“ 8 Analog Inputs (Multi-Function)
Ranges : ±1.28V, ±2.56V, ±5.12V, ±10.24V, 4-20mA

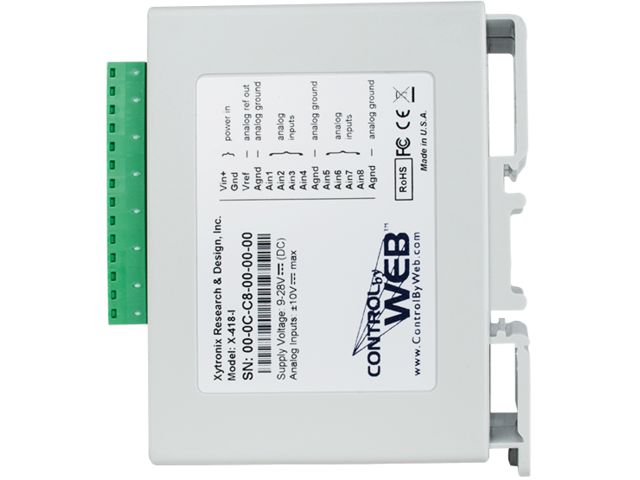

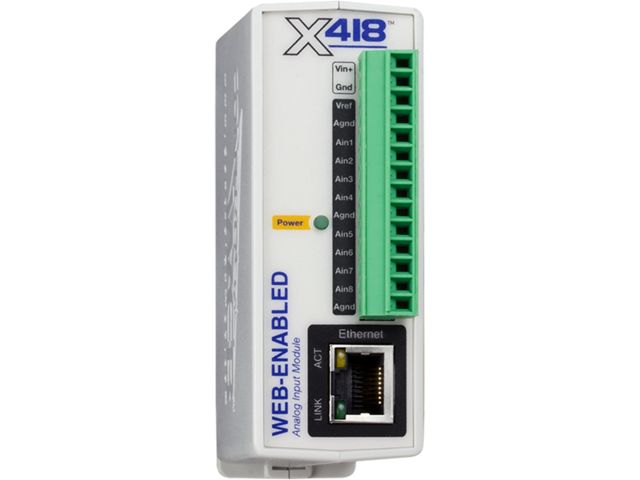

The X-418 features an eight-channel, 16-bit, analog data acquisition system. Each channel is configurable for single-ended or differential inputs.
Programmable voltage ranges include; ±1.28V, ±2.56V, ±5.12V, and ±10.24V. Inputs 1-4 can be configured for 4-20mA operation.
The 4-20mA mode enables a precision internal shunt resistor and configures the A/D for ±5V operation.
Monitor industrial sensors, wind direction sensors, pyranometers, pressure transducers, and much more.
”
Ask for a quoteReceive DocumentationContact the supplier
Monitor and Control up to 100 I/O
The X-418 supports peer-to-peer communication between ControlByWeb modules. It communicates with up to 32 modules and allows you to monitor and control up to 100 I/O points. The X-418 can communicate with all ControlByWeb devices but offers instantaneous messaging between X-400 Series products, this means that the X-418 can monitor and control I/O on other X-400 Series products as if it was directly connected to the module.
Task Builder
The X-418's built-in interface allows you to create custom "Tasks" for simple and advanced control logic.
Easily create tasks based on inputs or outputs’ status. Create up to three actions for each task providing you with the ultimate control and monitoring solution for your application!
Create up to 50 Scheduled, 50 Conditional, and 20 Override Schedules.
The X-418 also has a built-in BASIC interpreter for more advanced or custom applications not achievable through the Task Builder system.
Logging
The X-418 offers the ability to log a variety of data points such as local and remote I/O, registers, and voltage. Log entries can be made at preset intervals, scheduled times, triggered by I/O changes or logic events.
Schedule a daily log file to be sent via email or uploaded via FTP server.
Graphing
Graph the current log file and view the I/O's status over time.
Eight analog inputs: ±1.28V, ±2.56V, ±5.12V, ±10.24V, 4-20mA (Inputs 1-4 only)Built-in web server for configuration and remote monitoring (HTTPS supported)Control, monitor, and log 32 remote modules, or up to 100 I/OReal-Time Clock with NTP server synchronizationAutomatic daylight savings and leap year adjustmentHighly configurable - Almost any combination of input/relay control possibleBASIC script support for advanced flexibilityModbus, SNMP, Remote Service, IP FilteringRemovable 14-Terminal connector for easy installationRugged DIN-Rail/wall-mountable enclosure
