YSTRAL PiloTec / PiloTec-Plant

Dispersers

Vote

Ask for a quote

Presentation

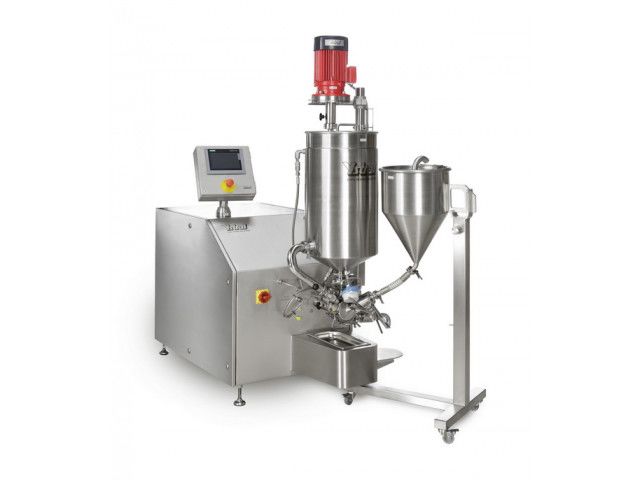

The latest generation of multifunctional YSTRAL PiloTec process equipment offers you the opportunity to use established production processes on a laboratory scale. Thanks to Conti-TDS technology, powder can be inducted, wetted and dispersed under vacuum, dust-free and in a single operation. Easy-to-use swappable tools enable operation using the innovative Multi-Z or Z-Inline process with high-precision multi-stage shear ring systems.

Established procedures and a specific energy input independent of the batch size guarantee excellent and consistent results. These can be easily transferred to production scale - a safe scale-up to ystral plant construction.

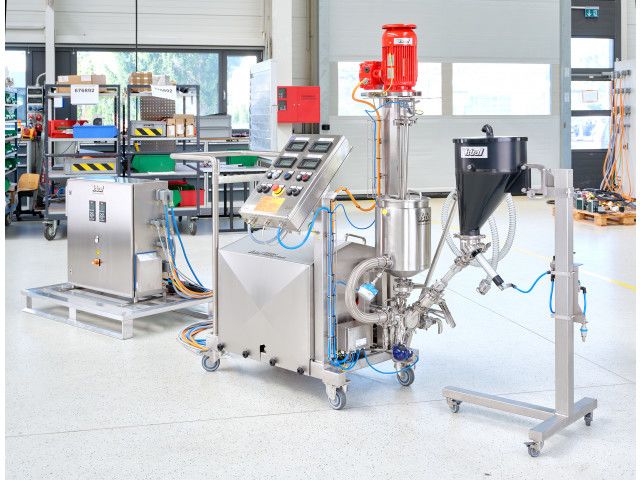

The modular design enables extension to the PiloTec-Plant process plant with ystral mixing technology, systems for handling powders and liquids, measuring technology and sensors, lifting stands as well as other modular components.

Technical features

Power: 4 kW Liquid throughput: 0.2 - 14 m³/h Shear rate: Up to 60 m/s Voltage: 230 / 400 V, 50 Hz dispersion chamber: Stainless steel 1.4404 Suction power powder: Up to 15 kg/min Batch size: Flexible 5 l up to 200 l

Download the complete technical features

Opinion on the product

Drop your rating on YSTRAL PiloTec / PiloTec-Plant

Your answer to the rating from -

Latest requests

16/09/2022

I would like some information on your pilot scale 5l and 20 litre Pilo Tech systems. I need to know if these can be supplied with heaters to allow the use of thermosoftening excipients such as TPGS and Peg 1500. Please let me know an approximate cost for heated and un heated versions of the 5 and 20 litree systems
