Mini Automatic Carrier

Automatic guided vehicles (AGV)

Vote

“ - Long life span (more than 15 years) - 2 senses of direction: forward and reverse - Low maintenance cost - Equipped with real-time diagnostic tools - Automatic recharge without need for traditional battery - Size and performance features fully customizable - Can be fitted with a wide range of equipment: hook, lifting table, conveyor etc. ”

Ask for a quote

Presentation

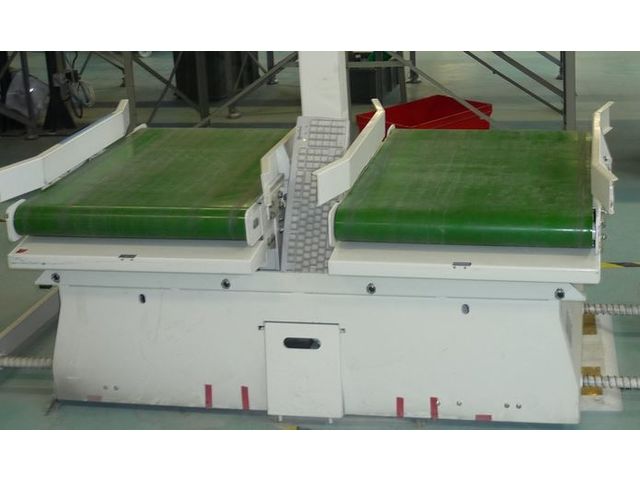

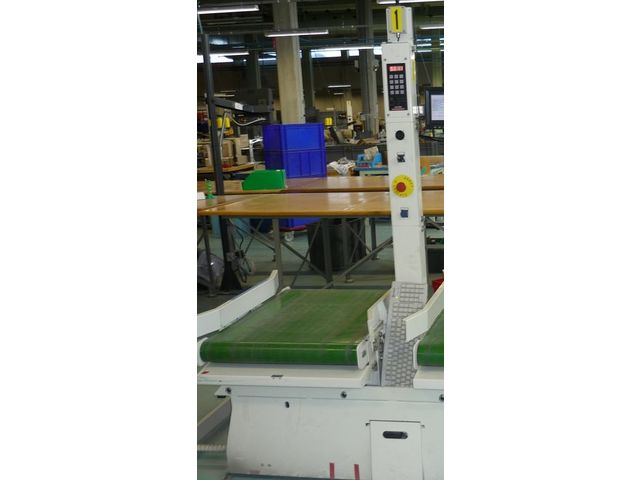

The Mini Automatic Carrier or AGC (Automated Guided Carrier) has been designed to automate and optimize material handling flows. It can be operated without skilled labor and can be used both in automatic or manual mode. The Mini Automatic Carrier is fully adjustable in height, width and length and can handle various equipment including lift tables with chains, rollers or belts.

It is capable of transporting loads up to 250 kg and pull carriers with a load of up to 600 kg. It can also make transfer / intake / dispatch in a precise and automatic manner. The Mini Automatic Carrier can be operated both in indoor and outdoor environments including deep-freeze zone as well as on metallic, asphalt, tiled or carpeted soils.

The Mini Automatic Carrier can be operated with a wide range of guidance systems including optical and magnetic tape guidance as well as Laserguidance and Odoguidance.

A fully customizable supervision system can be equipped on this Mini Automatic Carrier to manage interfaces between users and machines, machines and / or tailored GPAO secured by wireless link.

Technical features

Odoguidance, Laserguidance, Wallguidance Load capacity 250 kg Side and back safety Dimensions fully customizable Equipped with 2 synchronized belt conveyors Multiple automatic intake / dispatch 2 senses of direction Supervisor with GPAO and IHM liaisons Installation with 32 floor conveyors to serve
