1-channel transmitter | Liquiline Compact CM82

Other sensors

Vote

“ - Easy operation: Use your existing tablets and smartphones for operation and commissioning. - Fast and reliable: A secure Bluetooth connection allows you to check measuring points that are dangerous or difficult to access from a safe distance. - Benefit from all the advantages of Memosens technology: Memosens sensors offer you the safest data transmission, the highest measured value availability and total ease of use. - Space-saving installation: The two-wire device fits inside an assembly and does not require its own power supply. - Suitable for all locations: Whether your measuring point is exposed to dust, vapor, rain, snow, heat or cold, the CM82 will always be exactly the right transmitter for you ”

Ask for a quote

Presentation

Multiparameter field device for hazardous and non-hazardous applications in all industries

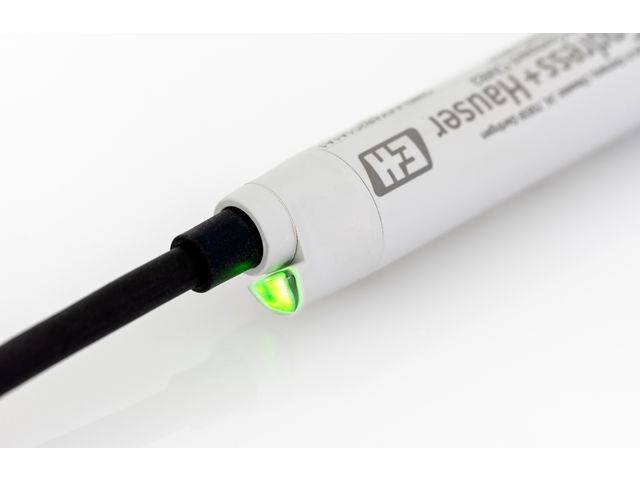

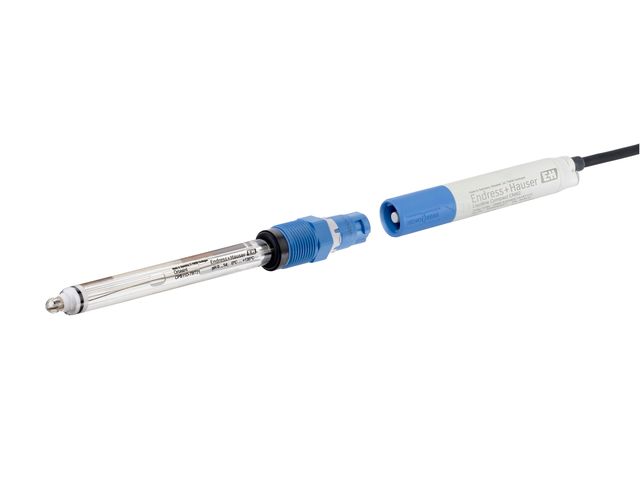

The Liquiline Compact CM82 is the smallest transmitter for Memosens sensors. Its slender housing measures only 11 cm long and 2 cm wide, including a connection to which you can attach your sensor directly, without a cable.

Together with the sensor, it fits into most assemblies and couldn’t be easier to install. Via a uniquely secure Bluetooth connection, you can see all nearby CM82 measuring points on your tablets or smartphones and operate them conveniently from a distance.

Technical features

Measuring principle : Glass electrode Design : Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets Material : Housing, cover: Peek 151 / Strain relief: EPDM / Axial ring Peek 450 G Dimension : Diameter: 18.95 mm (0.75 inch) / Length: 114.7 mm (4.52 inch) Connection : Connection of digital sensors with Memosens-Protocol Ingres protection : IP67, IP68, NEMA Type 6 Input : One channel transmitter Output : 4 to 20 mA, HART Additional certifications : CE, CSA C/US GP

Download the complete technical features

Usage scope

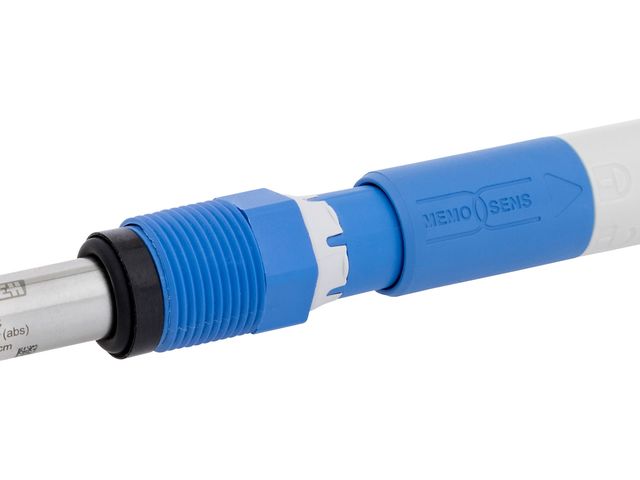

Liquiline Compact CM82 can be used in all industries and their utilities and supports all sensors with the blue Memosens plug-in head : pH sensors / ORP sensors / Conductivity sensors / Oxygen sensors / Chlorine sensors The loop-powered two-wire transmitter features the following protocols and interfaces : 4...20 mA / HART / Bluetooth With its international explosion protection approvals, such as IECEx, ATEX, and CSA, the Liquiline Compact CM82 is suitable for hazardous area use
