1-channel transmitter | Liquiline Compact CM72

Vote

“ - Space-saving installation: The two-wire device fits inside an assembly and does not require its own power supply. - Fast start-up: Thanks to its fixed configuration, the CM72 does not have to be commissioned and can quickly start its work. - Benefit from all the advantages of Memosens technology: Memosens sensors offer you the safest data transmission, the highest measured value availability and total ease of use. - On-site diagnostics: The status of the transmitter and the connected sensor are indicated with a red/green LED. - Suitable for all locations: Whether your measuring point is exposed to dust, vapor, rain, snow, heat or cold, the CM72 will always be exactly the right transmitter for you ”

Ask for a quote

Presentation

Single-parameter field device for hazardous and non-hazardous applications in all industries

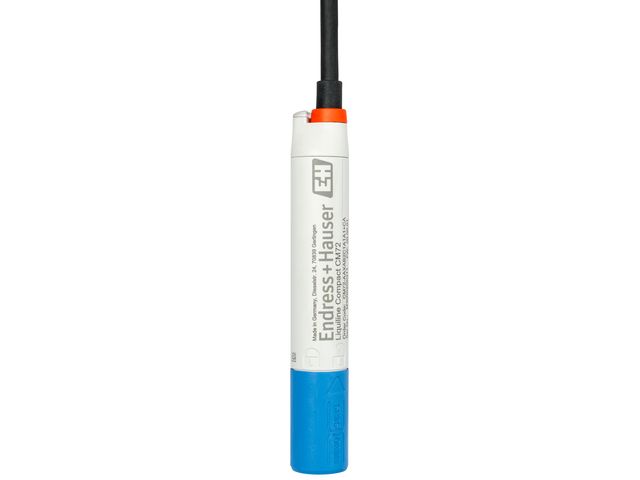

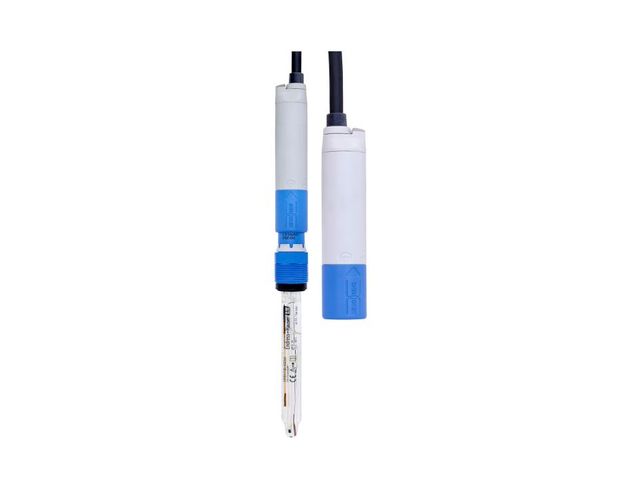

The Liquiline Compact CM72 is a small transmitter for Memosens sensors. It is the right choice for you if installation space is limited and you don't need the flexibility of a multiparameter device. Together with the sensor, it fits into most assemblies and couldn't be easier to install.

The measuring parameter and measuring range are already defined during the ordering process, making the CM72 immediately ready for use with a high degree of safety against operating errors.

Technical features

Measuring principle : Glass electrode Installation : Connection of digital sensors with Memosens-Protocol Measurement range : ORP sensors: -1500 mV to 1500 mV Design : Peek housing Material : Housing, cover: Peek 151 / Strain relief: EPDM / Axial ring: Peek 450 G Dimension : Diameter: 18.95 mm (0.75 inch) / Length: 114.7 mm (4.52 inch) Connection : Connection of digital sensors with Memosens-Protocol Ingres protection : IP67, IP68, NEMA Type 6 Input : One channel transmitter Output : 4 to 20 mA

Download the complete technical features

Usage scope

Liquiline Compact CM72 can be used in all industries and their utilities and supports all sensors with the blue Memosens plug-in head : pH sensors / ORP sensors / Conductivity sensors / Oxygen sensors / Chlorine sensors The measurement parameter and range are specified when ordering and can not be changed afterwards. The 2-wire device features the following interface : 4...20 mA With its international explosion protection approvals, such as IECEx, ATEX, and CSA, CM72 is suitable for hazardous area use
