1-channel transmitter | Liquiline M CM42

Other sensors

Vote

“ - Simple commissioning with quick setup and navigator - The Memosens technology allows plug & play with pre-calibrated Memosens sensors - Less storage thanks to modular design - Predictive maintenance system detects when a sensor has to be cleaned, calibrated or replaced ”

Ask for a quote

Presentation

Two-wire field device for hazardous and non-hazardous area use in chemicals, life sciences and food

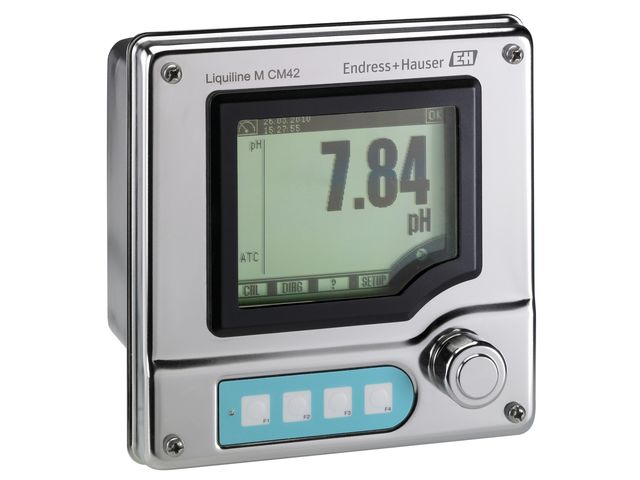

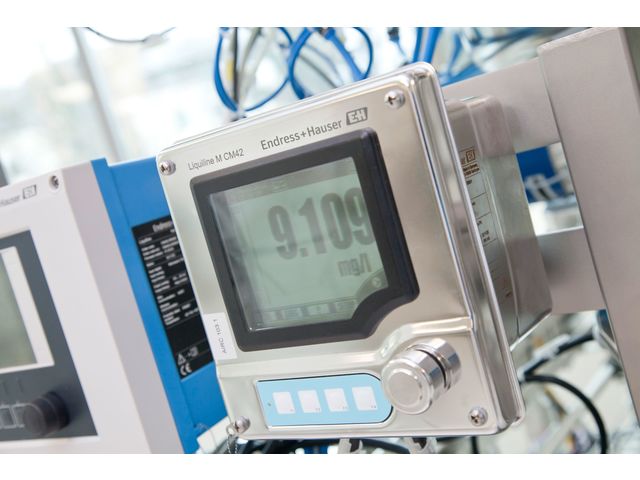

Liquiline M CM42 is the robust transmitter for pH/ORP, conductivity or oxygen measurement in all process applications. It is the best choice for demanding environments be it hygienic applications, hazardous areas or functional safety areas.

Liquiline’s intuitive operating concept simplifies commissioning, handling, and maintenance saving you time every day. Easy switching of parameters and seamless system integration give you the flexibility to adapt it exactly to your measuring task.

Technical features

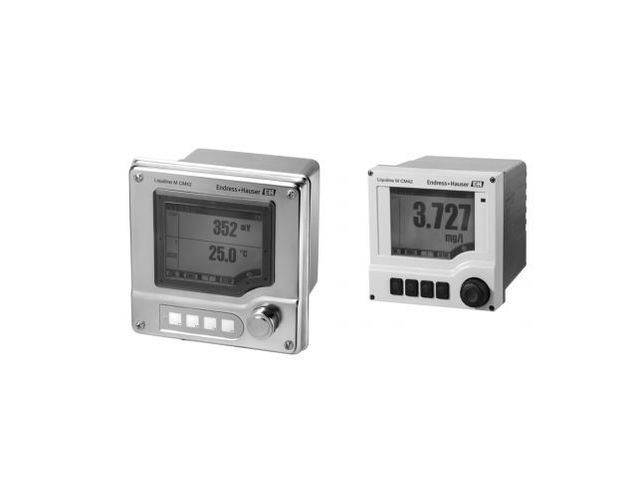

Measuring principle : Sensor Oxygen Application : Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas Characteristic : Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering Measuring principle : Connection of analog or digital Memosens sensors Design : Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol Liquiline is developed acc. to the international safety stan Material : Plastic or stainless steel housing with EPDM sealings Dimension : Plastic housing: 144 x 144 x 148 mm 5.67 x 5.67 x 5.83 inch / Stainless Steel: 174 x 174 x 134 mm 6.85 x 6.85 x 5.28 inch Input : One or two channel transmitter (with one reference connection) Output : 1/2 x 4 to 20 mA, HART, Profibus PA, FF / Additional second output possible, also later
