Loop-powered indicator for 4 to 20 mA or HART signals | RIA15 Endress+Hauser France

Loop-powered indicator for 4 to 20 mA or HART signals | RIA15

Other sensors

Vote

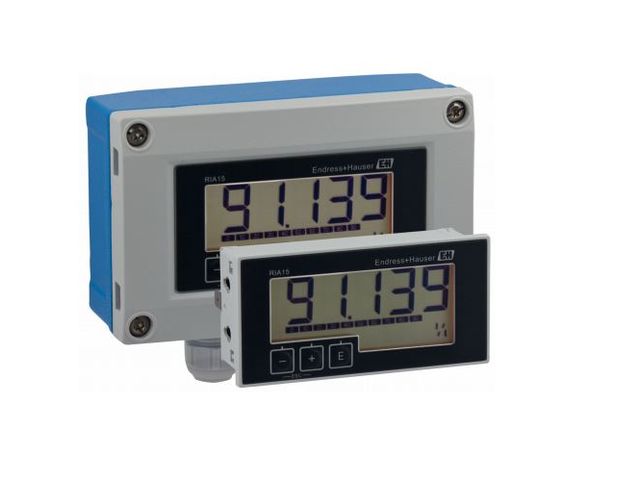

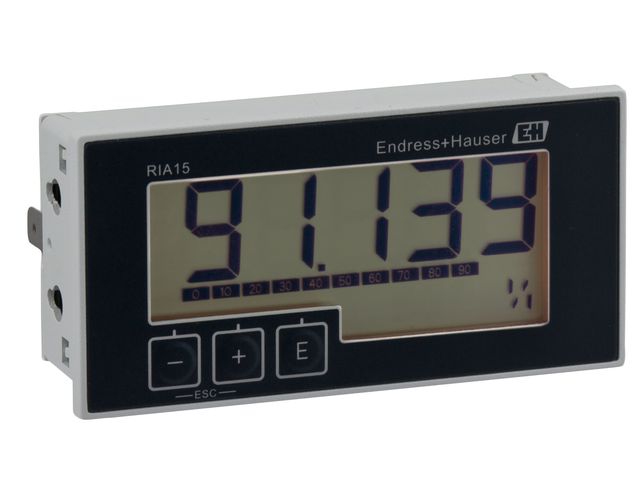

“ - Display of 4 to 20 mA measured values or optionally up to four of a sensor's HART® process variables in all industries; Use as primary or secondary HART® master - 5-digit measured value display with 17 mm (0.67") character height with dimension and bargraph; backlight can be activated - Panel-mount housing (IP65) or field housing (IP66; Ex approval) as local display; Minimal installation depth - No external power supply required; Voltage drop ≤1 V (HART® ≤1.9 V) - Easy 3-key operation for configuring the device - International approvals; marine approval - SIL interference freeness acc. to EN 60508 ”
Go to the supplier’s website Receive Documentation Ask for a quote

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!

The process indicator is available with 4 to 20 mA or with HART® protocol. In the HART® version up to 4 measured values of one sensor can be indicated in alternation. For this the indicator can be set as primary or secondary HART® master and actively inquire the values from the sensor. The small voltage drop of < 1V (< 1.9 V with HART®) is a huge advantage especially in Ex-applications, where in most cases only a reduced voltage is available.

Measuring principle : Loop powered indicators Power Supply : Loop powered Display : LCD 17 mm (0.6'') / 5-digit / 7-segment bargraph / Plain text display for unit/TAG / Activatable backlight Input : 1 x analogue 4...20 mA/HART® Panel : mounting field / panel mounting
Download the complete technical features

Display of 4 to 20 mA measured values or HART® process variables in all industries Panel-mount housing or field housing as local display Scalable display value
