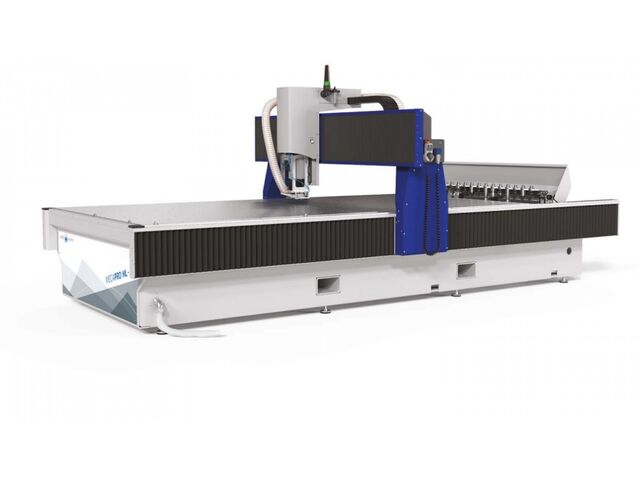

Efficient, versatile & adaptable cutting equipment for many fields
Designed for intensive industrial use
Working area adapted to new plate dimensions (working width 1600 or 2100 mm) for a wide range of plate and unrolled materials :
-
Polymers : PMMA, PEHD, PS, PET, PETG, PU, PC, ABS, PVC…in solid or honeycomb panels
-
Wood and its by-products: MDF, TRESPA and others phenolic derivatives, natural wood…
-
Lights alloys : Aluminium, Brass, Copper, Zinc…
-
Composites : Alucobond®, Dibond® and similar, Glass/Epoxy, Carbon/Epoxy…
-
Honeycomb panels: Nida®, Nomex®…
-
Machinable plates for molds and models
-
Hard materials only under conditions: Steel, Stainless Steel, Titanium
-
Mineral base panels for ITE
-
Rubber and derivatives
-
Foams with all densities
-
Paper, cardboard and derivatives
-
Plastics with small thickness (PVC, PS, PET, PETG, ABS, PC…)
STRENGHTS :
VERSATILE AND CUSTOMIZABLE EQUIPMENT :
-
-
High-speed machining (HSM)
-
Secondary pre-installed functions (heads non included): knife-cutting with tangential control, creasing by shaped wheels, cutting by disc blade, rigid tapping...
-
Secondary optional functions: angle sawing, angle head, camera registration, tool cooling...

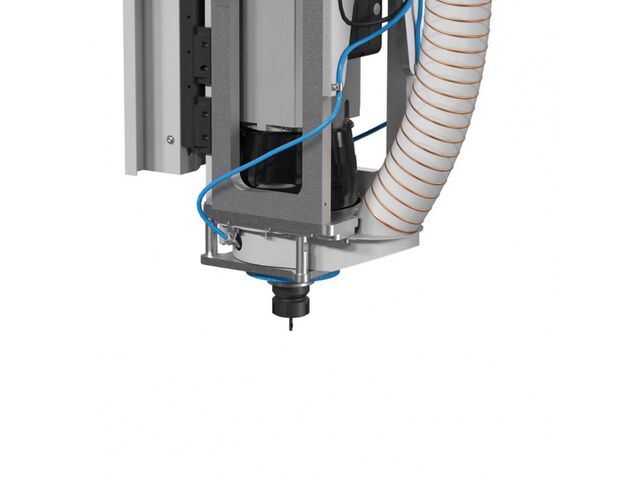

POWERFUL ELECTROSPINDLE WITH HIGH ROTATIVE SPEED
-
-
2 models available
-
4 ceramic bearings
-
Shock, vibration and temperature sensors with digital control alerts

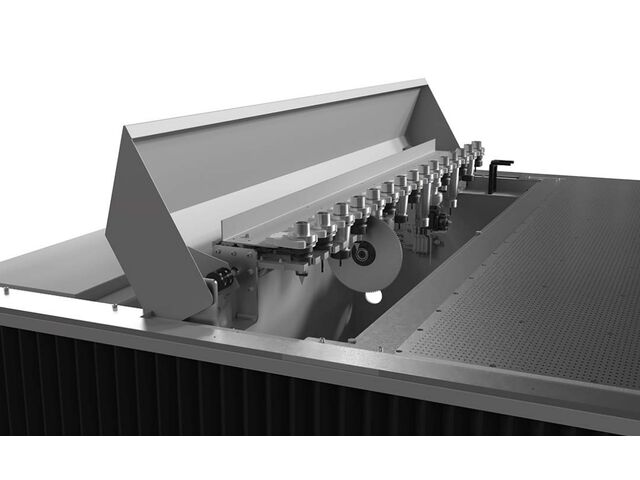

PRE-SET TOOL SHOP FOR ALL TYPES OF TOOLS AND HEADS
-
9 to 15 locations
-
Including 4 to 6 combined locations for: cones for vertical tools, cones for tangential control heads, cones for angle heads
-
Laser sensor for contactless measurement of tool length and diameter or the geometry and location of blades
DESIGNED TO LIMIT THE IMPACT ON THE ENVIRONMENT
-
Position-controlled chip suction nose
-
Vacuum table with variable power from 60 to 100% to always have the correct plate holding level with no electrical overconsumption
NUMERICAL CONTROL LATEST GENERATION
-
-
21 inches vertical touch screen on mobile control panel
-
Modern, simple and user-friendly HMI with online operator guidance (to avoid oversights and errors)
All you need to run your factory !
