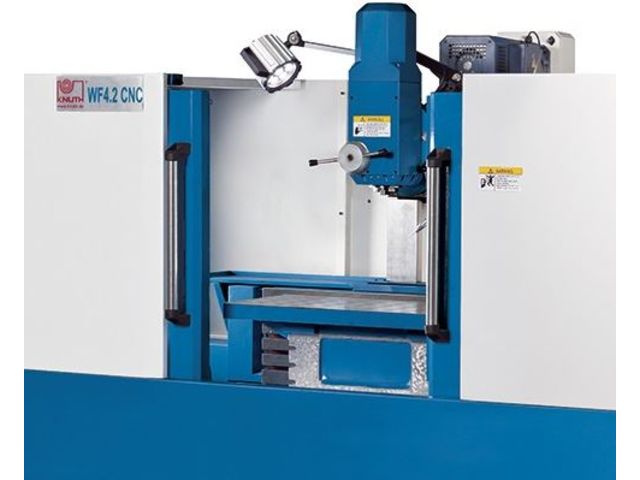

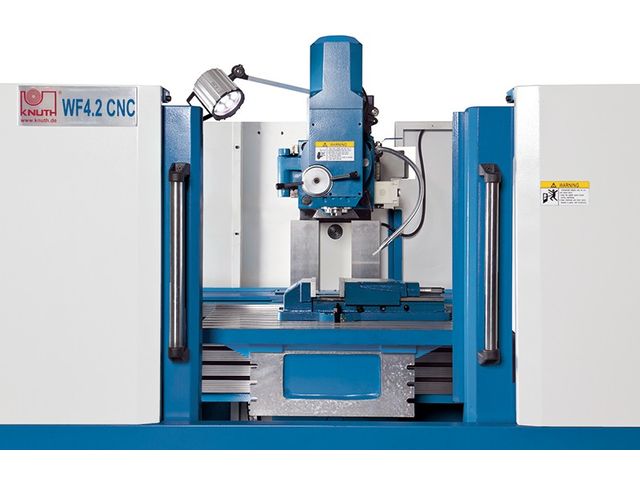

CNC Tool Milling Machine - WF 4.2 CNC KNUTH

CNC Tool Milling Machine - WF 4.2 CNC

CN milling machine

Vote

“ The top model of this successful series – now with CNC control ”
Ask for a quote Receive Documentation Contact the supplier

  • rigid, heavily ribbed construction ensures excellent damping characteristics
  •
  • high speed range (rapid feed up to 6000 mm/min) and good controllability via a low-maintenance servo-motor
  • easy operation - optimized for time-saving processes hydraulic tool clamping is standard equipment
  • quill feed at the vertical cutter head
  • infinitely variable spindle speeds (40 - 4000 rpm) – flexible use for a wide variety of materials

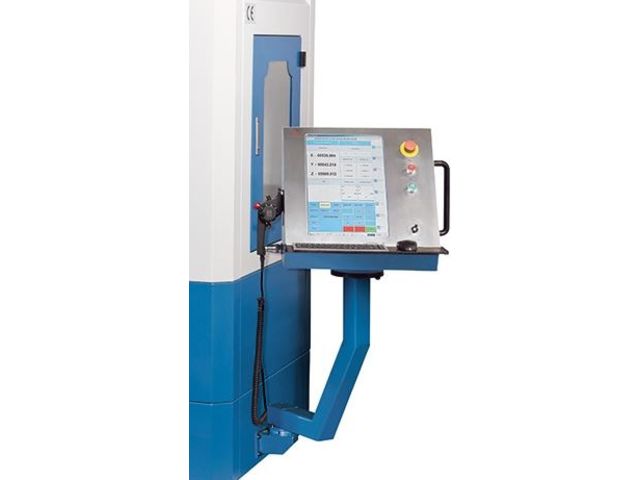

  • intuitive GPlus 450 control for maximum efficiency and cost-effectiveness.
Standard equipment
GPlus 450 control, short tool shaft 22, 27 mm, machine vise 160 mm, reducing sleeve MT1, MT2, MT3, MT4, cutter head clamping assembly, milling chuck with collets 4,5,6,8,10,12,14,16 mm, chip tray, electronic hand-wheel, anchor bolts, coolant system, outer arbor support for horizontal milling, work lamp, operating tools, operator manual

Table dimensions : 400x800 mm Table load capacity : 300 kg Number of T-slots : 14 Pieces T-slots, width : 7 mm T-slots, spacing : 50 mm Spindle nose-to-table surface distance : 25 - 425 mm Throat : 182 - 532 mm
