CNC Milling Machine - LabCenter 260

CN milling machine

Vote

“ The LabCenter combines compact dimensions with productivity and state-of-the-art CNC technologyCompact, mobile and professional for laboratories and training. ”

Ask for a quote

Presentation

- Precisely machined frame made of high-quality cast iron
- Dovetail guides and preloaded ball screws with servo drives on all axes
- Max. spindle speeds up to 5000 rpm
- Electronic hand-wheel for efficient and professional set-up

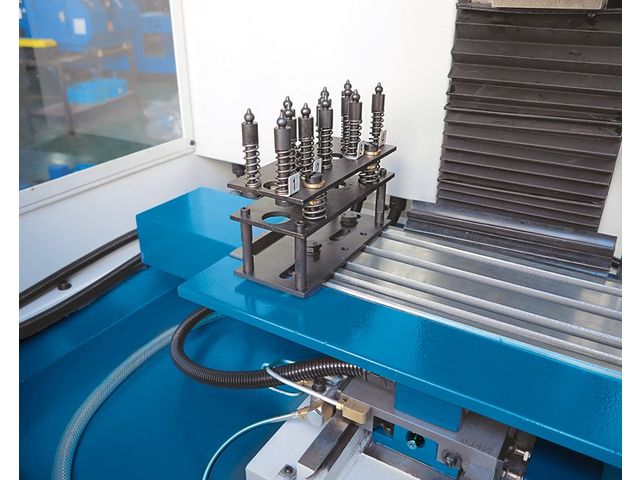

- 4-station tool changer ensures flexibility and optimum productivity
- Modern safety concept provides easily accessible enclosure and pneumatically opened door
- Mobile base with storage room for tools and materials

Standard equipement : Siemens 808D control, Siemens 808D on PC software, electronic hand-wheel, 4-station tool changer, pneumatic door, mobile base, central lubrication, work lamp, operating tools, operating manual and programming instructions

Technical features

Table dimensions : 400x145 mm Table load capacity : 20 kg Number of T-slots : 3 Pieces T-slots, width : 12 mm T-slots, spacing : 40 mm Spindle nose-to-table surface distance : 60 - 240 mm Throat : : 180 mm Number of tool stations : 4 Pieces Overall dimensions (length x width x height) : 1,4x0,9x1,85 m Motor rating main drive : 1 kW
