Multipurpose Milling Machine - MF 1 VP

CN milling machine

Vote

“ Perfect for Workshop and Training Applications ”

Ask for a quote

Presentation

The most widely used milling machine type in the world - with standard pneumatic tool clamping
infinitely variable hand wheel adjustment
Larger table with larger travel on X
TV 1000 automatic table advance on X axis is included, retrofitting of Y axis available

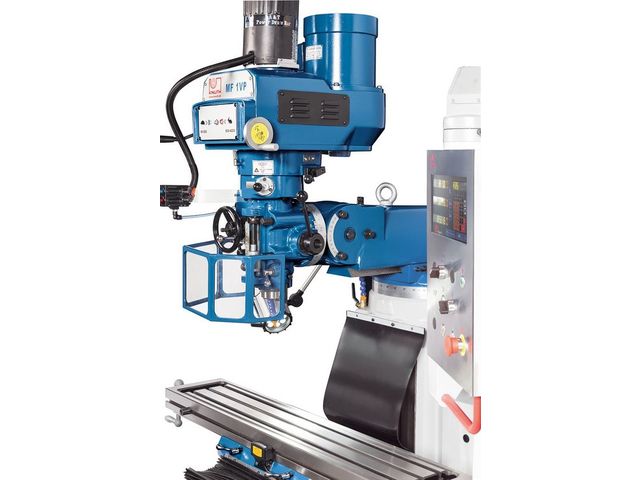

head swivels through 3 axes: swivel r + l ± 90°; tilt forward + reverse ± 45°; rotation on the column ± 45°
Dovetail guides, hardened, adjustable
3 automatic drill feeds
manual coarse feed for quill, with change-over for manual fine feed
quill with automatic micrometer depth stop
spindle mount ISO 30
reversing switch for forward reverse rotation

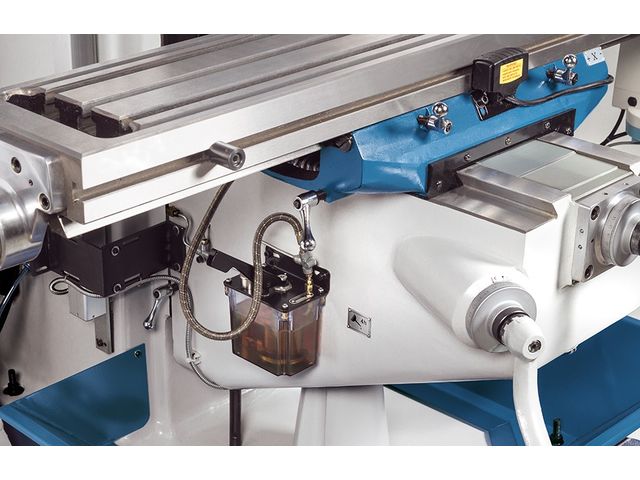

central lubrication for spindle, nut and guides
manual spindle brakes
pneumatic tool clamping
3-axis position indicator, coolant system, and LED work lamp (included in standard equipment)

3-axis position indicator

more accuracy
lower error rate
increased productivity
resulting in valuable time savings
for increased productivity
easy to read display
operator-specific features
convenient keyboard layout
resolution: 0.01/ 0.005 mm
default coordinates
axis position is maintained when display is turned off
hole circle pattern calculation
calculator function
storage for 10 tools
radius / diameter toggle
mm/inch conversion
easy expansion and maintenance-free operation

Standard equipment

3-axis position indicator, automatic table feed in X direction (TV 1000), pneumatic tool clamping, coolant system, manual central lubrication, vertical guideway cover, work lamp, operating tools, Bedienungsanleitung

Technical features

Table set up area : 1.245x230 mm Number of T-slots : 3 Pieces T-slots, spacing : 63,5 mm T-slots, width : 16 mm Speed range, infinitely variable : 70 - 3.600 rpm Throat : 171 - 476 mm Motor rating main drive : 2,25 kW Overall dimensions (length x width x height) : 2,05x1,63x2,07 m Weight : 950 kg
