“ Even the smallest deviations from 10 nm can be detected
Output of 3D point clouds for high-precision height measurement
Resolution in the nanometer range in the Z-axis direction ”
Ask for a quoteReceive DocumentationContact the supplier
reflectCONTROL sensors offer an innovative solution for defect detection on highly reflective and transparent surfaces. These sensors use phase-measuring deflectometry and enable full-surface measurement. In contrast to conventional visual inspection by humans, which involves a great deal of manpower and working time, the reflectCONTROL sensor delivers precise measurement results that allow a detailed analysis of the surface quality. Powerful software packages are available for evaluation and parameterization, which significantly improve the efficiency and accuracy of surface inspection.
Deflectometry sensor for 3D measurements of shiny surfaces: RCS 130-160 3D HLP

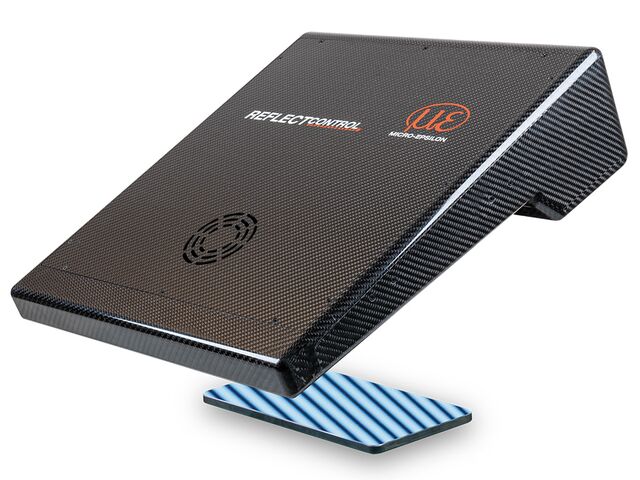

The RCS130-160 3D HLP is intended for shape measurements of shiny objects. This sensor displays a striped pattern which is mirrored by the surface of the measuring object into the sensor cameras. The sensor provides a 3D image of the surface which allows for the topology of the components (e.g. flatness, deflection, curvature) to be determined. The RCS130 model is specially optimized for measurement and inspection tasks, e.g., in production lines. Moreover, the sensor has a GigE Vision interface that offers GenICam compliant data.
Features:
Measuring field 170 x 160 mm
For the measurement of highly reflecting, flat surfaces
Output of 2D base intensity, amplitude and curvature images
Output of 3D point clouds for high precision height measurement
Surface inspection of shiny components: RCS 110-245 2D
The reflectCONTROL RCS110-245 2D with integrated controller is designed for stationary measurements or integration into machines. This compact sensor detects anomalies on shiny surfaces which are processed and displayed as reflectivity and curvature image by software. GigE Vision enables the transfer of surface images to a wide range of image processing software packages for further analyses.
Of course, all the functionalities of the RCS110-245 2D are also included in the reflectCONTROL RCS130-160 3D HLP. Both sensors therefore offer powerful solutions for surface inspection and enable seamless integration into existing systems.
Features:
Measuring field 110 x 245 mm
For the measurement of highly reflecting, flat surfaces
Output of 2D base intensity, amplitude and curvature images
Improved camera arrangement for sharper 2D imagesEven the smallest deviations from 10 nm can be detectedOutput of 3D point clouds for high-precision height measurement3D data directly from the sensor with up to 5 million data pointsResolution in the nanometer range in the Z-axis directionXY resolution 100 µmPowerful 3DInspect software
