“ Large objects max. 650 x 495 mm
High measuring range depth up to 300 mm
Acquisition time from 0.5 s ”
Ask for a quoteReceive DocumentationContact the supplier

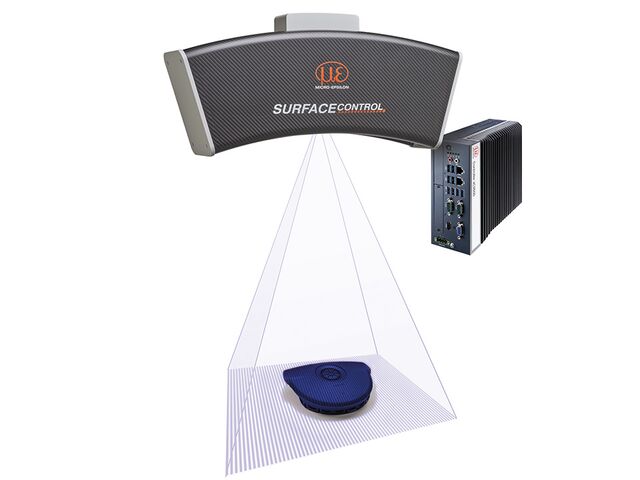

The surfaceCONTROL 3D 2500 snapshot sensor is used in 3D measurements for geometry, shape and surface inspection on diffuse reflecting surfaces. The sensor can be used in both automated in-line and at-line inspections as well as in the metrology room. The fringe light projection allows direct 3D measurement. The sensor is characterized by its large measuring field as well as a high measuring range depth of up to 300 mm with a repeatability of up to 3.0 µm. The captured images are transferred to the external controller where they are processed into 3D data. Three models cover different measuring fields.
The new generation of 3D measurements
The SC2500 controller offers fast data output via the Gigabit Ethernet interfaces. The 2D/3D Gateway II supports EtherNet/IP, PROFINET and EtherCAT connections. 3DInspect, DefMap3D and InspectionTools are powerful software tools that enable precise 3D measurements and surface inspection. GigE Vision compatibility also allows easy integration into third-party image processing software. The comprehensive SDK for customer software integration rounds off the software package.
Application examples
3D inspection of geometry, shape detection and surface inspection
Automation, production and process monitoring as well as quality control
Non-contact measurement of diffuse reflective surfaces in the Stop and Go process
Shape, position and surface inspection
Large objects max. 650 x 495 mmHigh measuring range depth up to 300 mmAcquisition time from 0.5 sHighest precision up to 0.5 μmDigital interfaces (via controller 2500): GigE Vision/GenICamDigital interfaces (via 2D/3D gateway): Gigabit Ethernet (GigE Vision / GenICam) / USB2.0 / PROFINET / EtherCAT / EtherNet/IP
