ShapeINSPECTION

Contactless 3D measurement

Vote

“ -100% of production Inspection -Fully automatic -3D geometries -Complex geometries -Internal & external geometries -Very High speed measurements -Very high accuracy (0.1µm) -Non contact sensing -Inspection in very short cycle time -No dead time inspection -Reliability of an automated inspection ”
Ask for a quote Receive Documentation Contact the supplier

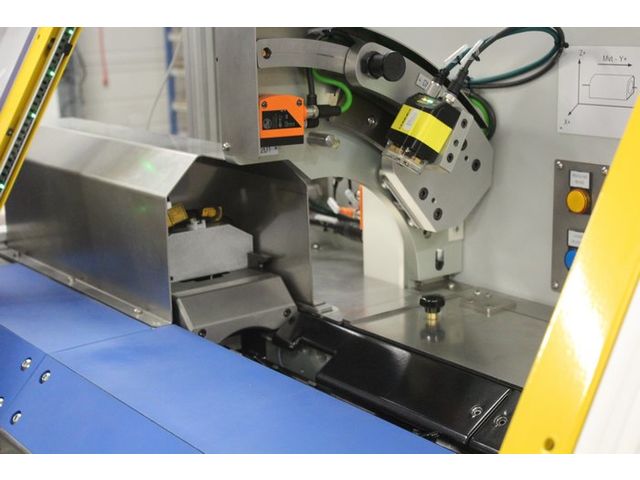

ShapeINSPECTION is the name of the line of non-contact 3D inspection machines developed by MS3D to inspect long or flat parts. These external dimensional inspection systems are used to inspect 100% of parts directly on the production line, for parts families such as camshafts, injector bodies, watch strap clasps, CVTs, etc., with measurement uncertainty in the 0.2 μm to 1 μm (1σ) range.

Dimensions and Shapes:
Angle – Cylindricity – Diameter – Circularity – Coaxiality – Concentricity – Height – Parallelism – Symmetry –Perpendicularity – Flatness – Location – Profile – Blind hole diameter, etc.

Typical parts inspected:

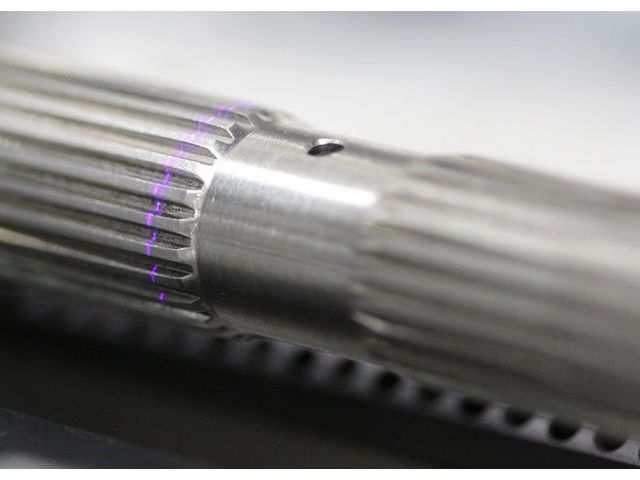

Camshafts, splined shafts, tubes and pipes, injector bodies, connectors, gearbox shafts, steering columns, CVT belts, valve levers, etc.

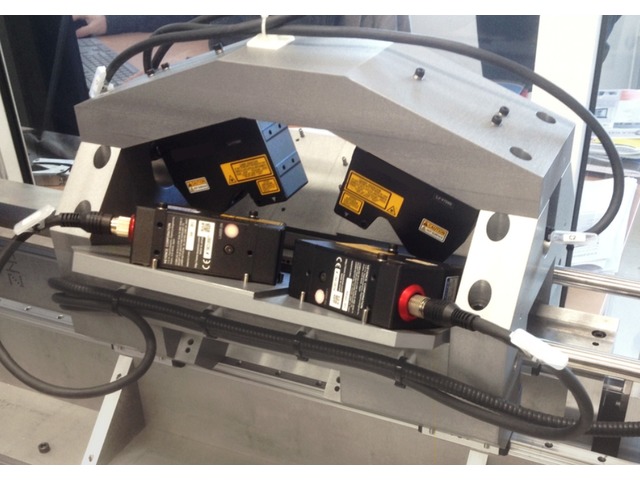

Non-contact sensors : Laser line triangulation -Laser spot triangulation - Confocal chromatic coding - Micrometer 1D and 2D Translation table : Yes, parts or sensors Parts loading : Manual, with robot / convoyer / palette Autonomous work position Dimensions ( mm) 2000 x 1000 x 2000 Weight : 900 Kg GUI Standard and configurable Unlimited measurable references
Download the complete technical features

Automotive Aerospace Nuclear - Defense
