GEARINSPECTION MESURE SYSTEMS 3D

GEARINSPECTION

Contactless 3D measurement

Vote

Ask for a quote Receive Documentation Contact the supplier

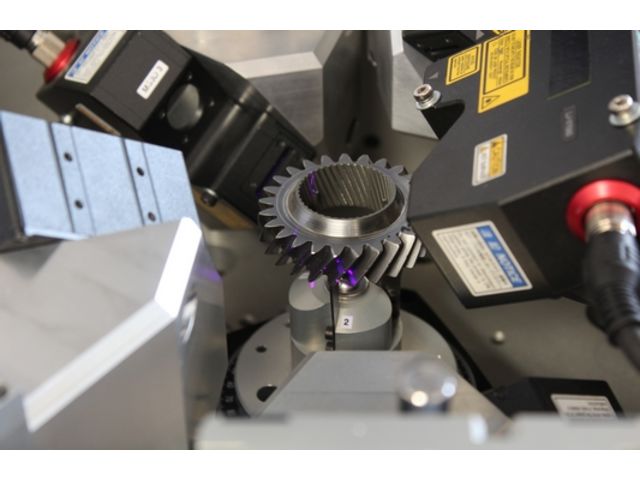

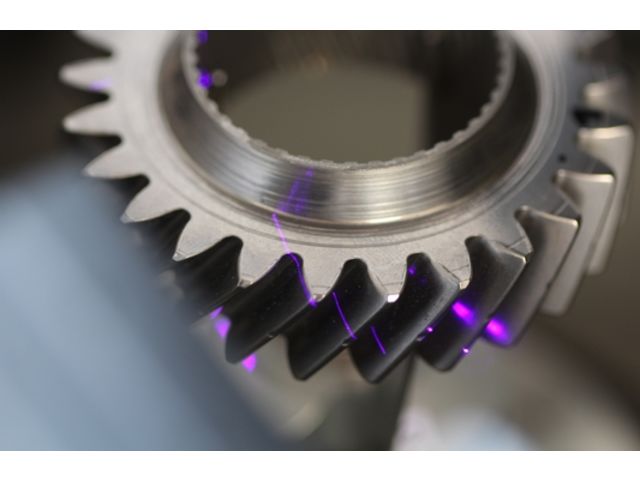

GearINSPECTION is the line of non-contact 3D inspection machines designed for the in-line inspection of gears. These inspection systems are used to inspect 100% of teeth from each gear produced on the production line (profile, helix, pitch, runout) with measurement uncertainty in the 0.2µm to1µm(1σ) range.

Dimensions and shapes:
Profile angular deviation - Profile total deviation - Profile form deviation - Profile curved - Helix slope deviation - Helix deviation, total - Helix form deviation - Helix curved - Cumulative pitch deviation, total - Single pitch deviation - Rundness deviation

100% of parts and 100% of teeth are inspected Inpsection within the manufacturing cycle time Faulty gears are stopped before going into final assembly Extremely fast Return on Investment Simple interfacing with the manufacturing process A loading robot integrated in the GearINPECTION machine
Download the complete technical features

POWERTRAIN AEROSPACE DEFENSE
