Airspray Fluid Regulator - Manual Drive and Integrated Pilot

Equipment and supplies for painting

Vote

“ This manual drive equiped with integrated pilot allows for very precise pressure control leading to high working precision. It is mounted as standard on our diaphragm pump PMP150. ”

Ask for a quote

Presentation

The manual drive regulator with integrated pilot allows to keep a constant pressure. The use of this regulator is the best way to get a very high working precision. With the continuous control of the product pressure, it allows a constant production quality. Designed for low to medium viscosity materials.

Very high precision regulation
Easy flushing thanks to sleek fluid passage design

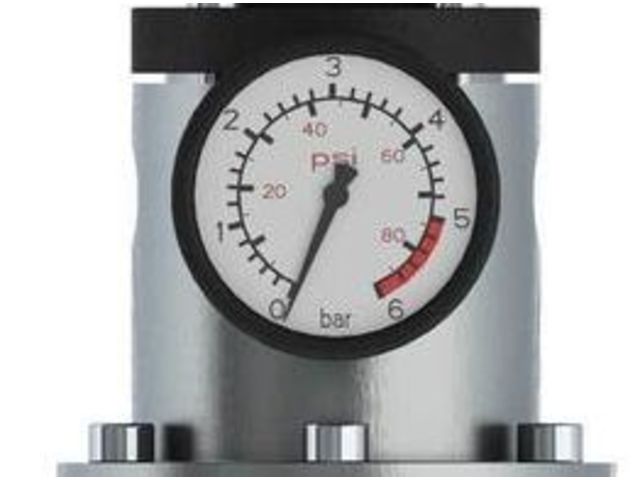

Delivered with pressure gauge

Performance

very high working precision: the pressure control ensures a regular flow
Pulsation free for a great atomization: ultimate SAMES KREMLIN diaphragm design

Productivity

Easy flushing: no dead zones
Product savings

Sustainability

Compatible with all types of products: stainless steel design
Optimized SAMES KREMLIN diaphragm sustainability since it works in an ideal regulation range

Technical features

Weight : 1.6 (3.5) kg (lbs) Inlet Pressure Maximum : 10 (144.9) bar (psi) Outlet Pressure - Regulated Range : 0.5 (7.2) - 4 (58) bar Max Working Temperature : 50 (122) °C Height : 20 (7.9) cm (in) Diameter (Large Passage) : 0.9 (0.4) cm (in) Product minimum flow rate (in a large passage) : 0.2 (0.1) l/mn (gal/mn) Product maximum flow rate (in a large passage) : 1.5 (0.4) l/mn (gal/mn)

Download the complete technical features
