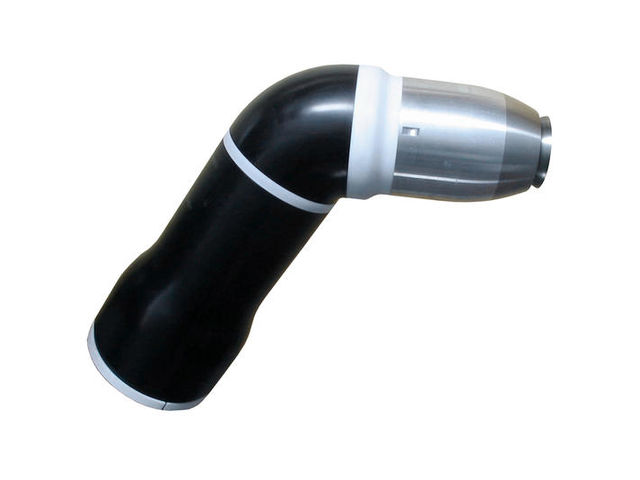

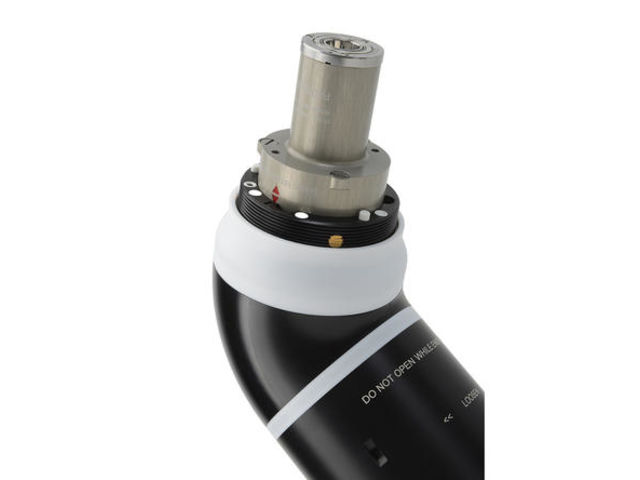

Robotic sprayer for 2 component solvent-based paint : PPH 707 2K

Equipment and supplies for painting

Vote

Ask for a quote

Presentation

PPH 707 SB 2K is a sprayer dedicated to the electrostatic application with internal charge of 2 component liquid paints. It is equipped with the static mixer located just before the bellcup injector which helps to
reduce the mixed paint volume to only 2cc (0.07 oz).

Low material loss
High reliability
Easy to maintain

Performance

High rotating speed
High voltage unit
Hi-TE dual shaping air
2K mixing component

Productivity

Static mixer in the head
Valve close to mixer
Remote bell monitoring device
Easy to upgrade PPH 707 SB to 2K (same TCP and body)

Sustainability

High reliability for automotive paintshop
Microvalves with bellow available for abrasive materials
Long-life high voltage unit
2.5 million cycle life of valves
Titanium bellcup for longer life
*7 years/30,0000h warranty turbine
Easy to maintain
Easy disassembly of parts in contact with hardener
No mixed material in robot arm
No mixed material can return back in the circuit
Magnetic bellcup fastening system
Quick disconnect

*whichever is the sooner

Technical features

Weight: 7.15 (15.76) kg (lbs) Viscosity Scale (min-max) : 20 - 40 seconds FORD Cup#4 Standard Material Supply Pressure : 6 - 8 (87 - 116) bar (psi) Maximum Material Pressure : 10 (145) bar (psi) Minimum Paint Flow : 30 (.008) cc/min (gal/min) Standard Paint Flow : 500 (.132) cc/min (gal/min) Maximum Paint Flow : 1000 (.264) cc/min (gal/min) Hardener Resistivity (min-max) >3 MOhm.cm Rotation Speed : 15 - 85000 rpm Voltage Max : 100 kV

Download the complete technical features
