Système automatisé de mesure de micro fuite et résistance des soudures des emballages : Oxylos Fuite_Anéolia_2

Automated system for measuring micro-leaks and packaging sealing resistance Anéolia

Automated system for measuring micro-leaks and packaging sealing resistance

Leak testing

Vote

Ask for a quote

Presentation

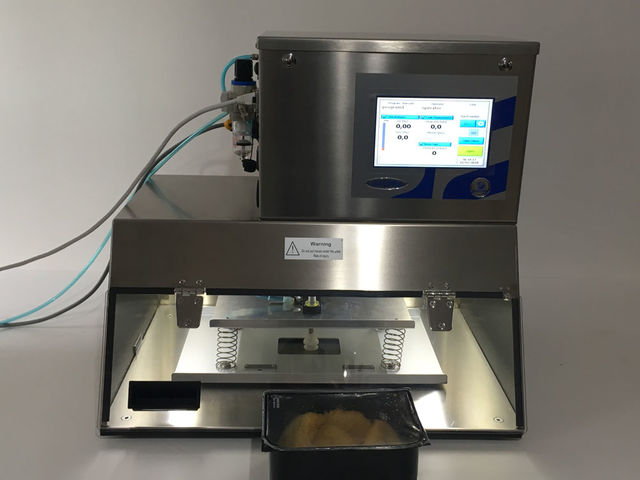

The OXYLOS LEAK allows you to measure the airtightness across all types of containers and packaging, without protective atmosphere, and without having to use any consumables (no need to use needles or septums). Automated and safe, the OXYLOS can be adapted to your production constraints, providing you with sampling tools and customised positioning. The high-end analyser from the ABISS brand provides you with solutions for packaging when space above the contents is limited. Able to be synchronised to the packaging line, the OXYLOS becomes autonomous and does not require an operator in order to carry out measurements. This analyser is ideal for production.
THE + PRODUCTS

    Standards :
        DIN 55508-1 : Flow measurement under constant pressure
        ASTM F1140 – Seal resistance
        ASTM F2054 – Burst testing
    No consumable
    Fully hand safe
    Laser positionning tool for sample
    Can be synchronised to conveyors
    Effective hole size calculation down to 5 μm
    Fully traceable via an internal spreadsheet
    The needles are cleaned automatically
    Remote maintenance 7 days a week, with remote connection available

Technical features

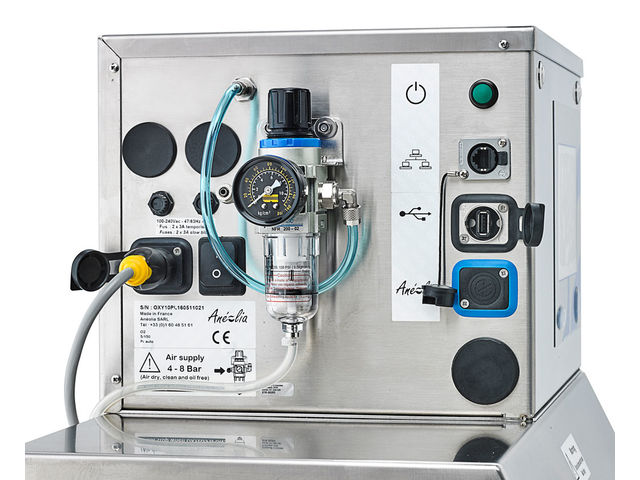

Custom placement tools : yes Ingress protection of enclosure : IP 65 Measurement device : Bench-mounted Enclosure : Acier inox Weight : 28 kg Width : 560 mm/Height : 495 mm/Depth : 473 mm Power : 100-240VAC -50/60Hz - 63W Feed pressure : 4 to 8 Bar (dry and oil free filtred to 20 µm) filtered at 20μm Inlet pneumatic connection diameter : 4 x 6 mm tube connection Memory capacity : 4 to 32go
