System for measuring micro-leaks and packaging sealing resistance : Exos Leak Anéolia

System for measuring micro-leaks and packaging sealing resistance : Exos Leak

Gas analysis

Vote

Ask for a quote

Presentation

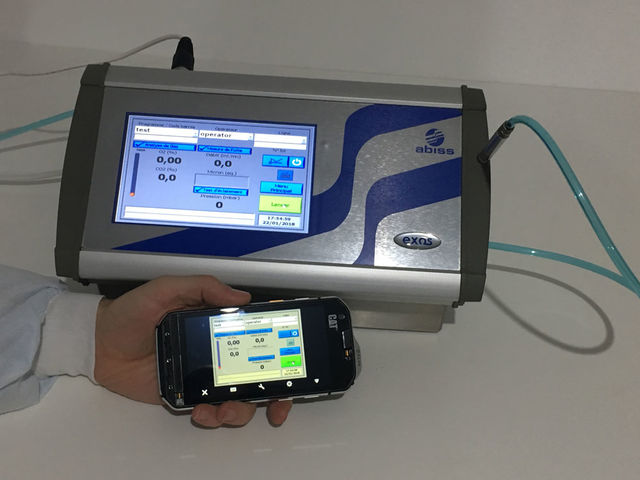

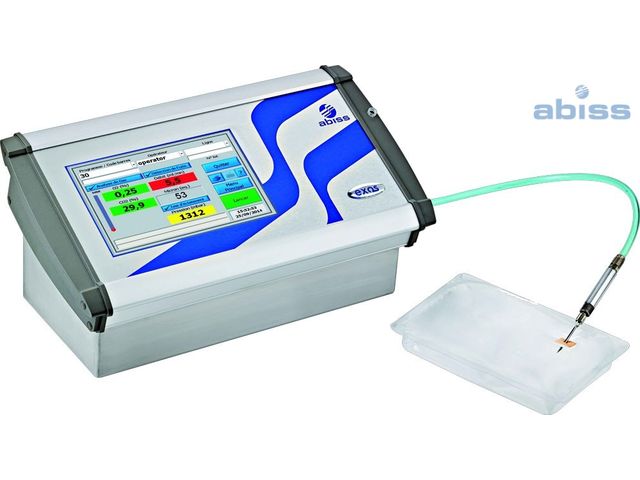

The EXOS LEAK allows you to measure airtightness for vacuum packaging and pneumatic circuits. This measurement device also checks the resistance of sealing using a bursting test. These two tests can be carried out in quick succession on the same packaging. The sensitivity threshold can be up 5 microns in terms of perforation size (Equivalent size of a bacterium is between 1 and 10 microns)
THE + PRODUCTS

    Standards :
        DIN 55508-1 : Flow measurement under constant pressure
        ASTM F1140 – Seal resistance
        ASTM F2054 – Burst testing
    Measures with low excessive pressure
    Breathability measurement (micro-perforated films)
    Tested on vacuum packaging
    Fully traceable via an internal spreadsheet
    Excessive pressure can be fitted manually or automatically
    Remote maintenance 7 days a week, with remote connection available

Technical features

Ingress protection of enclosure IP 41 (54 option) Measurement device Bench-mounted Enclosure Enclosure Aluminium, stainless steel, ABS Weight : 5 kg Width 340 mm/Height 170 mm/Depth 230 mm Power : 100-240VAC -50/60Hz - 63W Feed pressure :4 to 8 Bar (dry and oil free filtred to 20 µm) filtered at 20μm Inlet pneumatic connection diameter : 4 x 6 mm tube connection Memory capacity : 4 to 32go Display : Color touchscreen 7’’

Download the complete technical features
