AVL Battery Test System

Test stands

Vote

“ Turnkey AVL battery testbed incl. TÜV-certified safety concept R&D and production support with multifunctional layout Highest flexibility thanks to the containerized testbed design Mnimize installation effort and operating costs due to intelligent layout Verifying super capacitors, lead-acid, nickel-metal hydride and lithium-ion batteries ”

Ask for a quote

Presentation

Evaluating Electrochemical Energy Storage

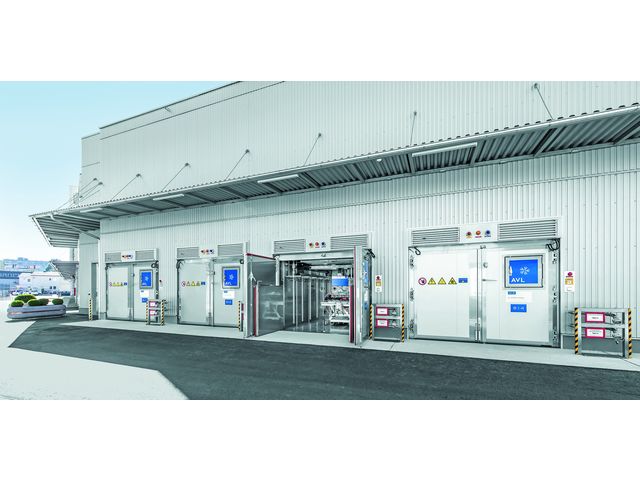

AVL battery test systems support the evaluation and lifetime investigation of electrochemical energy storage systems used in both hybrid and electric vehicles. We supply them as either a free-standing test rig or as a containerized solution.

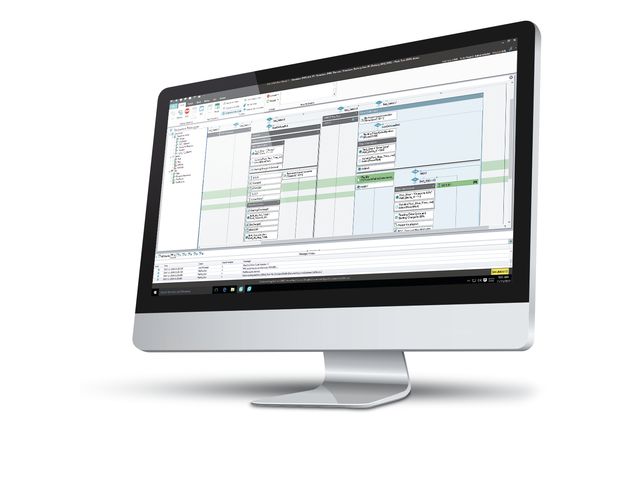

Our test systems support a wide range of applications – from basic characterizations according to the standard testing procedures (ISO/IEC, SAE) to sophisticated customer-specific evaluations using our virtual proving ground technology AVL InMotion 4™.

AVL InMotion 4™ supports the examination of cells, modules and packs and is able to characterize various energy storage systems for different applications, such as scooter, passenger car, light and heavy duty.

Technical features

Power range up to 1200 kW Precise climatic Temperature range from -40 to 85 °C No switching time between charging and discharging Interaction with the battery management system Fast rise times combined with high accuracy Defined interfaces Full sinusoidal power feedback onto the main electrical grid

Download the complete technical features

Usage scope

Characterizations according to the standard testing procedures (ISO/IEC, SAE) Sophisticated customer-specific evaluations All types of energy storage systems: super-capa, lead-acid batteries, NiMH or Li-ion Various applications like scooter, passenger car, light and heavy duty
