“ Modular – expandable up to 4 channels
Ethernet/EtherCAT interface
Easy configuration via web interface ”
Ask for a quoteReceive DocumentationContact the supplier

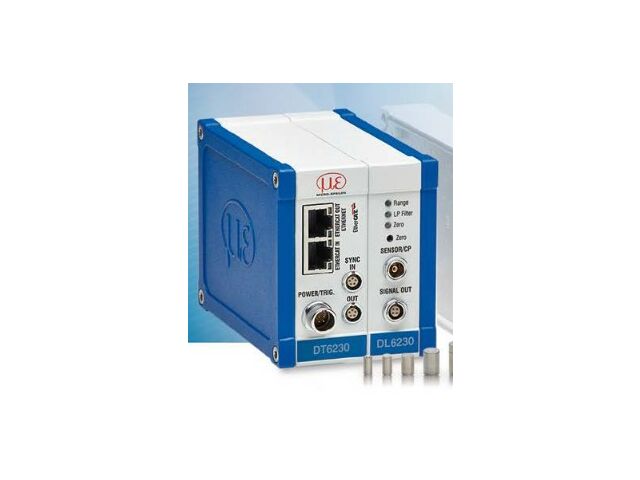

The capaNCDT 6200 is the first entirely modular multi-channel measuring system. The controller can be expanded to 4 channels and is therefore suitable for flexible applications. All capacitive displacement sensors from Micro-Epsilon can be operated using the capaNCDT 6200 controller. The integrated Ethernet interface supports parameter setting and measurements via web interface. The DL6230 demodulator provides high resolution measurements. For high-speed measurements up to 20 kHz, the capaNCDT 6222 system is available.
The measurement system consists of one controller and the respective demodulator for the sensor. A modular design enables the system to be expanded at any time to four measuring channels. Therefore, an additional demodulator is integrated. The compact controller can be used as a benchtop unit, wall-mounted or DIN rail-mounted via an adapter. The capaNCDT 6200 is compatible with all sensor models from Micro-Epsilon.
Ease of use via web interface
Due to a user-friendly web interface, the entire configuration process of the controller and sensors is carried out without using any additional software. The web interface can be accessed via Ethernet and provides set up and configuration options for filters, arithmetic links and other parameters.
Measuring ranges (mm): 0.05 | 0.2 | 0.5 | 0.8 | 1 | 2 | 3 | 5 | 10Resolution max. 0.2 nm (with DL6230)Linearity max. 0.01µm Frequency response up to 20 kHz (-3dB)Data rate (digital output) 3.9 kHzModular – expandable up to 4 channelsAnalog output (voltage/current)Ethernet/EtherCAT interfaceEasy configuration via web interfaceIntegrated EtherCAT and PROFINET interfaces
