High-precision thickness measurement of electrically conductive films | capaNCDT TFG6220

“ Fast offline inspection of the film thickness Resolution: 10 nm Automatic smoothing of the film with vacuum ensures highly precise results ”

Ask for a quote

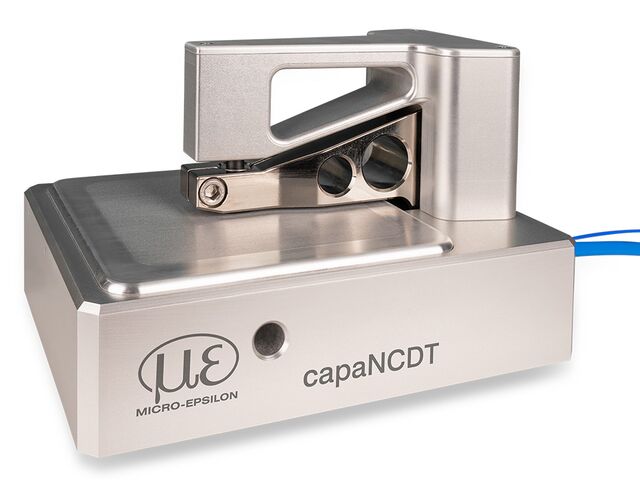

The capacitive TFG6220 system measures the thickness of electrically conductive films, e.g. battery films, with maximum precision. A vacuum device sucks in the object to be measured, smooths it and thus ensures that is optimally positioned without wrinkles. In this way, the measurement can be performed with the greatest possible precision. The system is used for offline random samples in quality inspection. Last but not least, the TFG6220 is pre-assembled ready for operation and enables a quick start.

Precise testing for reliable quality

The TFG6220 consists of a measuring bracket including sensors and a capaNCDT controller. It calculates the thickness by evaluating the readings of the two capacitive sensors. An external vacuum device automatically smooths the measuring object. This is how micron-precise results are achieved.

Technical features

Fast offline inspection of the film thickness Resolution: 10 nm High repeatability: 1 µm Possible film thickness: < 1 mm Automatic smoothing of the film with vacuum ensures highly precise results Integrated measuring insert for simple referencing before thickness measurement Easy operation/visualization via the freely accessible sensorTOOL software

Download the complete technical features
