Capacitive mobile gap measurement with high precision | capaNCDT MD6-22

Capacitative movement sensors

“ Preset measurement modes for fast commissioning Storage of measurement data on SD card Battery life 5h ”
Ask for a quote Receive Documentation Contact the supplier

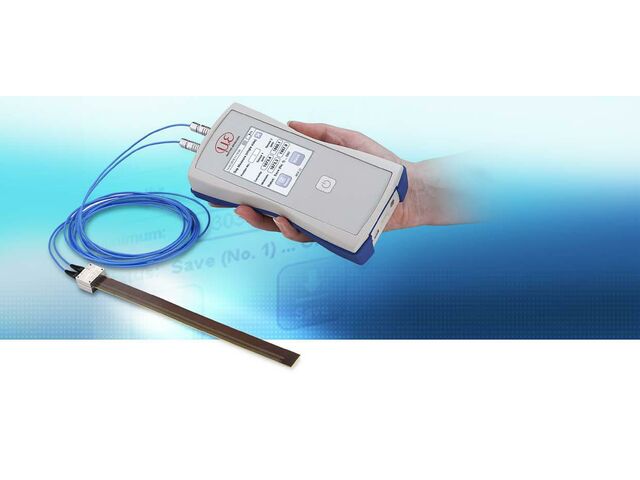

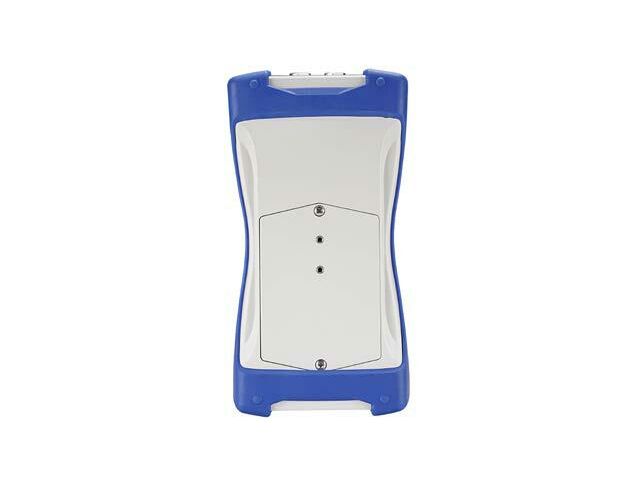

The capaNCDT MD6-22 capacitive dual-channel handheld gauge is used for mobile and precise measurement of gaps. This measuring device impresses with high accuracy, intuitive operation and long battery life. Thanks to preset measurement modes, the handheld gauge is immediately ready for use. Compatible with all capacitive sensors from Micro-Epsilon, the MD6-22 is used in different measurement tasks, e.g. for rotor gap monitoring in wind turbines and alignment of rollers in plant and machinery.

Intuitive operation & immediately ready for use

Preset measurement modes make the capaNCDT MD6-22 immediately ready for use. The measurement types are matched to the different sensor types and targets.

Mobile gap measurement at the highest precision

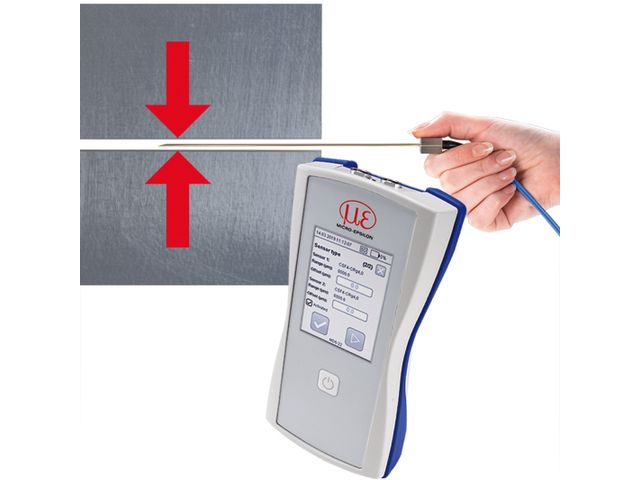

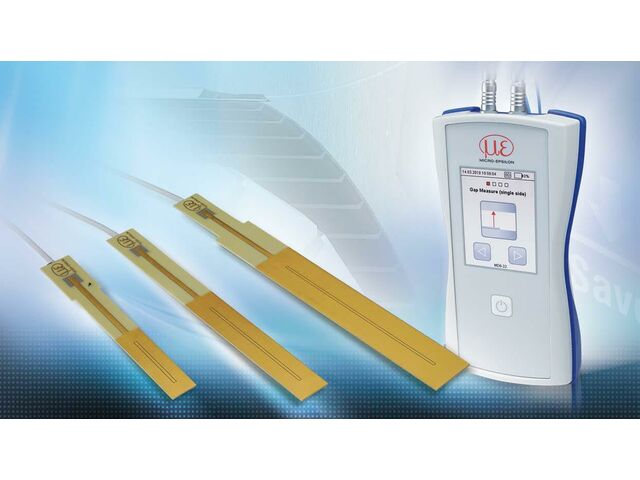

Inserted into the gap, the flat sensors from Micro-Epsilon determine the gap width based on the active measuring area. Gaps up to 12 mm can be detected reliably.



Measurement channels: 2 Resolution 0.02 % FSO Linearity ≤ ± 0.2 % FSO Frequency response 100 Hz Weight 500 g (without magnetic holder) Touch display Preset measurement modes for fast commissioning Storage of measurement data on SD card Battery life 5h
Download the complete technical features

Mechanical engineering Energy Turbine & engine manufacturing Test benches

11/12/2025

We would like to measure the gap between chrome plated components, min gap: 1,2 mm.

OTHER PRODUCTS CAPACITATIVE MOVEMENT SENSORS  FROM MICRO-EPSILON France

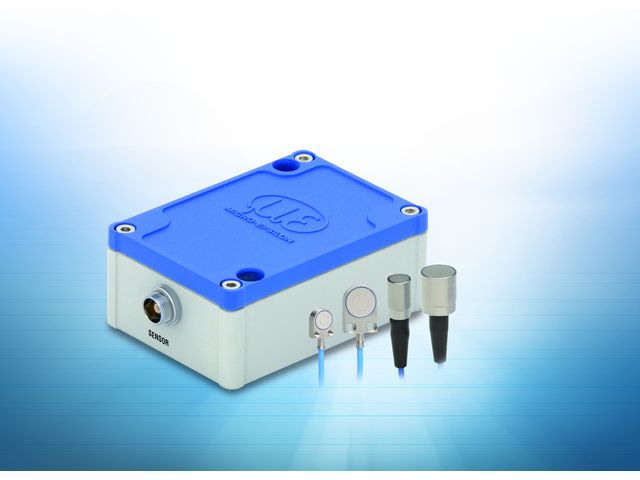

Compact capacitive sensor system | capaNCDT 6110

Compact capacitive sensor system | capaNCDT 6110

 Ask for a quote

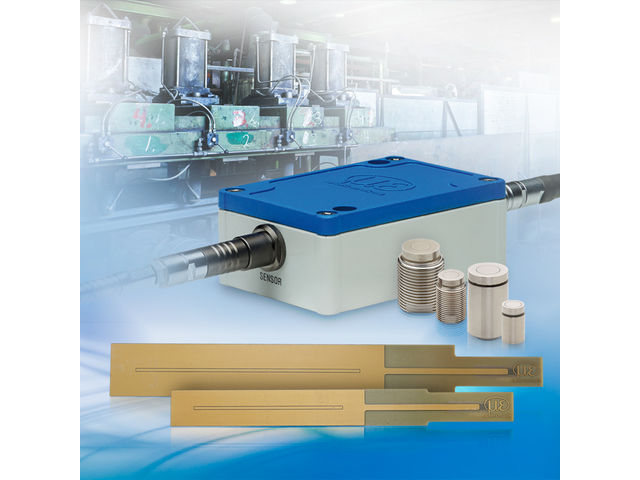

Capacitive measuring system for industrial applications | capaNCDT 61x0/IP

Capacitive measuring system for industrial applications | capaNCDT 61x0/IP

 Ask for a quote

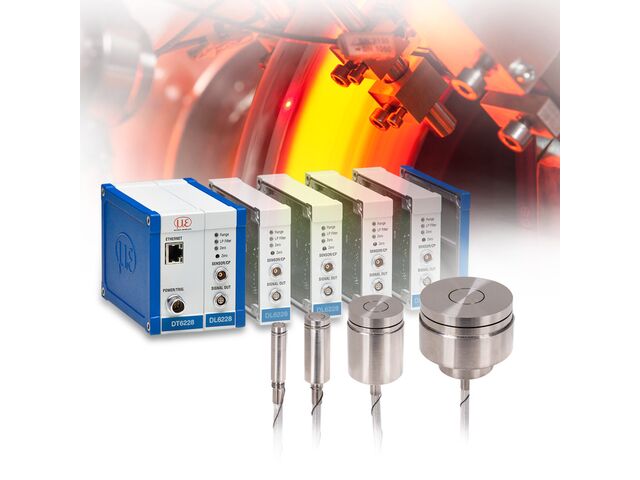

Capacitive high temperature sensors up to 800 °C | capaNCDT 6228

Capacitive high temperature sensors up to 800 °C | capaNCDT 6228

 Ask for a quote
Active capacitive sensors for long signal transmission paths | capaNCDT 61x4

Active capacitive sensors for long signal transmission paths | capaNCDT 61x4

 Ask for a quote
Precise thickness measurement of electrode coatings and plastic films | combiSENSOR

Precise thickness measurement of electrode coatings and plastic films | combiSENSOR

 Ask for a quote
High-precision thickness measurement of electrically conductive films | capaNCDT TFG6220

High-precision thickness measurement of electrically conductive films | capaNCDT TFG6220

 Ask for a quote

Check out all the products from capacitative movement sensors  from MICRO-EPSILON FRANCE

INTERNET USERS ALSO CONSULTED ON THE CATEGORY CAPACITATIVE MOVEMENT SENSORS

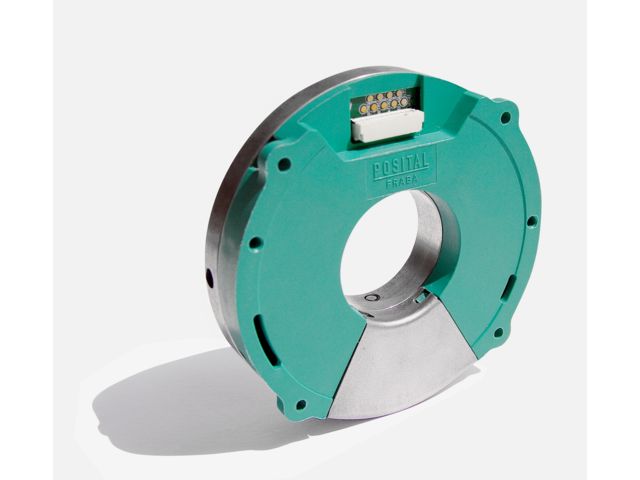

HOLLOW SHAFT MULTI-TURN KIT ENCODERS
