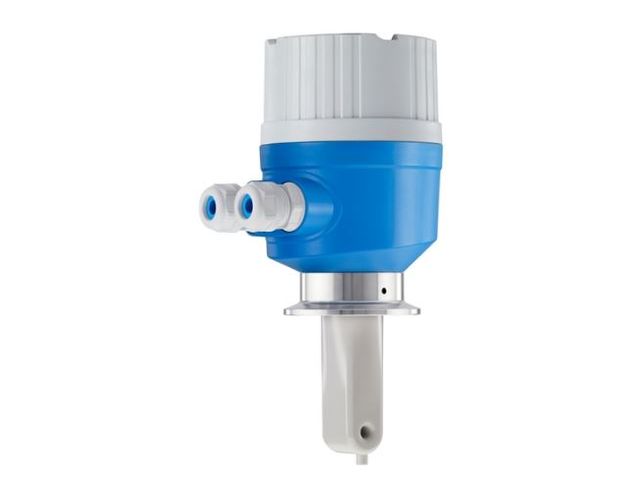

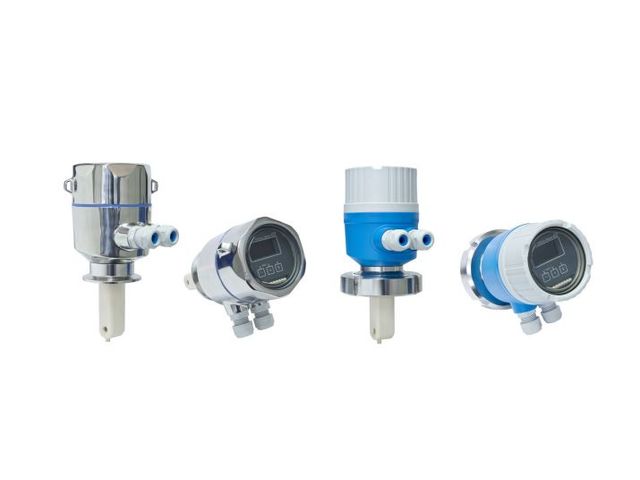

Compact conductivity device | Smartec CLD18

Vote

“ - Unique hygienic design avoids contamination - 3-A approval - Compliant with EG 2023/2006 and 1935/2004 - Suitable for cleaning-in-place (CIP) - Compact design permits installation in small tubes without restricting the flow ”

Ask for a quote

Presentation

Toroidal conductivity measuring system for hygienic applications

Smartec CLD18 is the cost-effective solution for all applications in beverage plants where small tubes are used and where the toroidal measurement is used as a switch function.

The combination of a transmitter and a sensor is interference-free, easy-to-use and features a hygienic design that protects your products and processes from contamination.

Smartec CLD18 ensures the Overall Equipment Effectiveness (OEE) of your plant thanks to fast and reliable CIP and phase separation measurements.

Technical features

Measuring principle : Inductive Measurement range : 200 µS/cm to 1000 mS/cm - Cell constant k: 11.0 1/cm Design : Hygienic design with FDA certified virgin PEEK Material : Sensor: PEEK / Process connection 1.4435 (316L) / Seal: EPDM Process temperature : -10 °C to 110 °C (14 °F to 230 °F) - Sterilization: max. 130 °C at 6 bar abs up to 60 min (Max. 266 °F at 87 psi up to 60 min) Process pressure : 13 bar abs up to 50 °C (188.5 psi up to 122 °F) - 7.75 bar abs at 110 °C (112 psi at 230 °F) - 6.0 bar abs at 130 °C for max. 60 minutes (87 psi at 266 °F for max. 60 minutes) Temperature sensor : Pt 1000 (class B) Connection : Dairy pipe, aseptic-fitting DN40 and DN50, Clamp 2 Output : Conductivity and temperature.0/4-20 mA Additional certifications : 3A, FDA, EHEDG EC Regulation No. 1935/2004

Download the complete technical features

Usage scope

Food industrie Beverage industrie Specifically intended for use in beverage industry applications and especially suitable for: Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring
