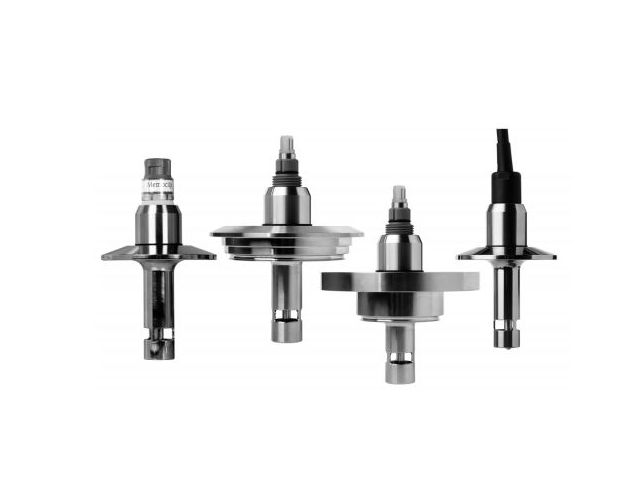

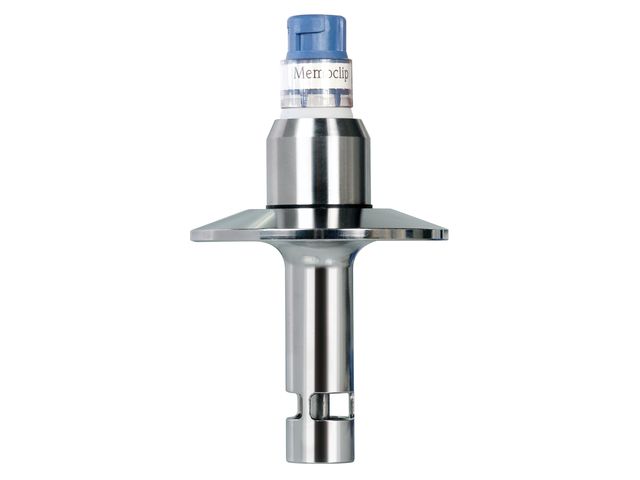

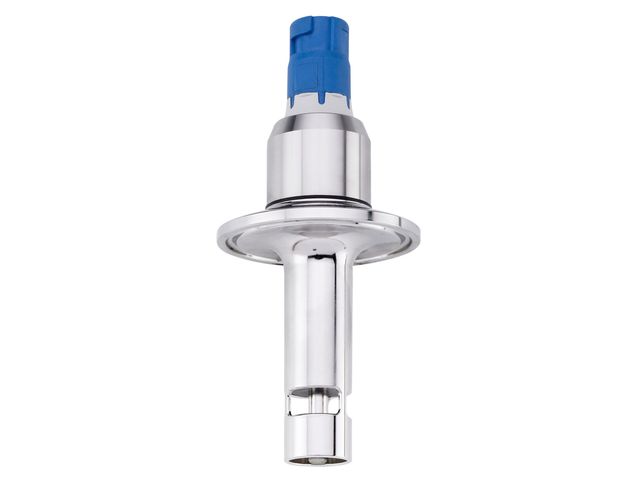

Digital conductivity sensor | Condumax CLS16D

Conductivity meters

Vote

“ - Highest precision and measuring accuracy - Hygienic design certified by EHEDG - Certified biocompatibility according to USP class VI and FDA compliance of all wetted materials - Sterilizable and autoclavable - Quality certificate stating the individual cell constant - Logging of sensor-specific data for easy traceability and predictive maintenance - Convenient maintenance strategy with Memobase Plus for easy calibration and sensor management ”

Ask for a quote

Presentation

Memosens conductive conductivity sensor for hygienic applications in pure and ultrapure water

Condumax CLS16D is a high-end conductivity sensor with certified hygienic design. It measures with highest precision providing you with reliable data for optimum process and product quality. Numerous certificates and various hygienic process connections ensure the perfect fit for your process.

With Memosens technology, CLS16D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration, and facilitates predictive maintenance.

Technical features

Measuring principle : Conductive Application : Pure and ultrapure water, pharmaceutical industry Characteristic : Hygienic 2-electrode conductivity sensor Measurement range : k=0,1: 0,04 to 500 µS/cm Material : Isolation: PEEK / Electrode: polished stainless steel 1.4435 / Sealing: Isolast (FFKM) FDA conform Dimension : Electrode diameter: 17 mm (0.66 inch) / Electrode length: 54 mm (2.13 inch) Process temperature : -5 to 120 °C (23 to 248 °F) / For Sterilizsation: max. 150 °C at 5 bar (Max. 302 °F at 73 psi) Process pressure : 13 bar at 20 °C (188 psi at 68 °F) / 9 bar at 120 °C (130 psi at 248 °F) Connection : Process connection: Varivent, Neumo, Clamp / Cable: Memosens connector Ingres protection : IP68

Download the complete technical features

Usage scope

Monitoring and control of Ion exchangers Monitoring and control of Reverse osmosis Monitoring and control of Distillation Monitoring and control of Electro-deionizing Monitoring and control of Water for injection (WFI)
