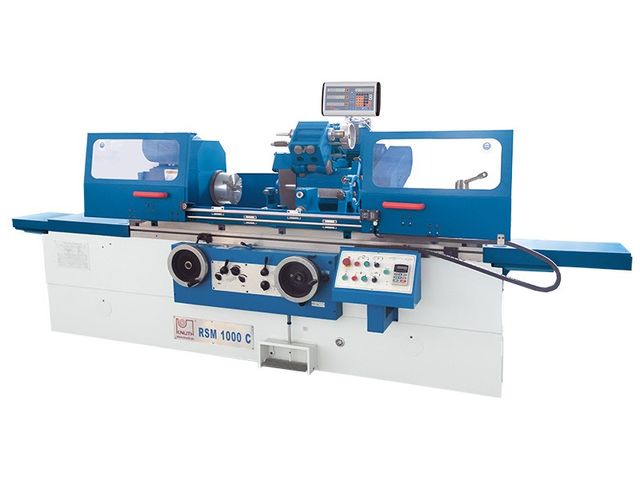

“ High-Precision Cylindrical Grinding Machine for Inside and Outside Machining ”
Ask for a quoteReceive DocumentationContact the supplier

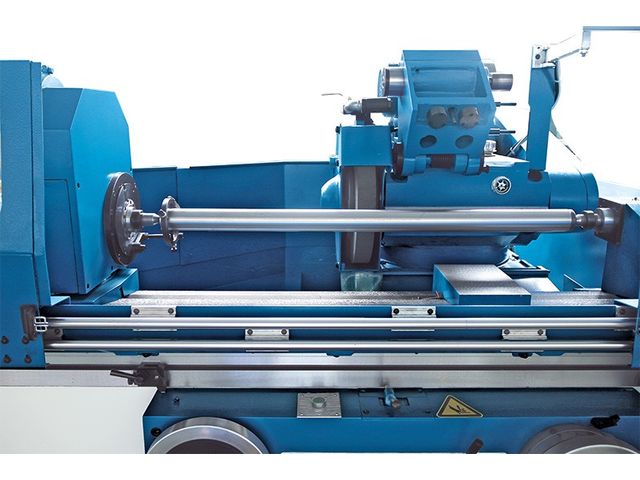

• Large machine bed in a heavy design accommodates workpieces with lengths up to 1000 mm and diameters up to 320 mm
• Wide, precision-ground guideways ensure maximum accuracy across the entire workpiece length and accommodate high workpiece weights
• The table features large dimensions and swivels in two directions - table movement via hand-wheel or automatically via linear hydraulic feed
• The robust feed valve allows very precise micro-feed control on the X axis, including a user-adjustable dwell time at the end of the longitudinal table travel
• Hydraulic ratchet feed simplifies exact X axis positioning, limited by an adjustable zero stop, and repeated feeds by the push of a button
• The adjustable grinding spindle features superior bearings and provides for maximum precision and surface quality, plus extraordinary tool life and rigidity
• The grinding spindle motor provides up to 5.5 kW power and is designed for continuous operation
• The heavy-duty spindle head swivels 30° to the left and to the right; the work spindle head swivels 45°
• Standard inside grinder for grinding parts with diameters up to 100 mm
• Integrated rapid feed on Z axis with manual return
Standard equipment : 2-axis position indicator, internal grinding equipment, open rest, closed rest, 3-jaw chuck Ø 200 mm, coolant system, grinding wheel dresser, balancing station, balancing mandrel, grinding wheel flange, grinding wheel, center point, front and rear splatter guard, drivers, operating tools, Bedienungsanleitung, test certificate.
