Cyclomix™ Multi Airmix® Plural Component Electronic Mixing & Dosing System SAMES KREMLIN

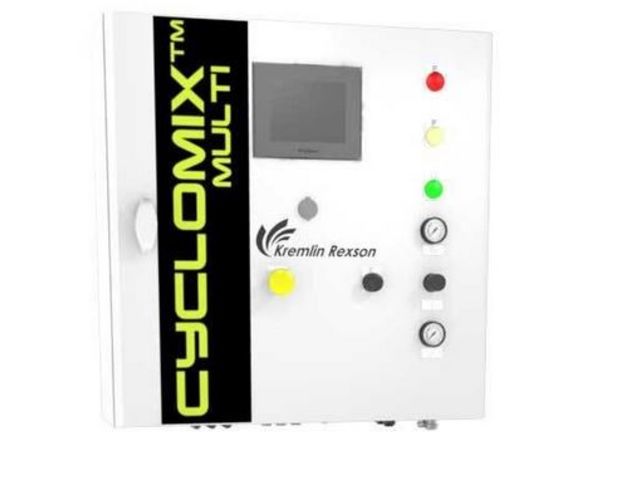

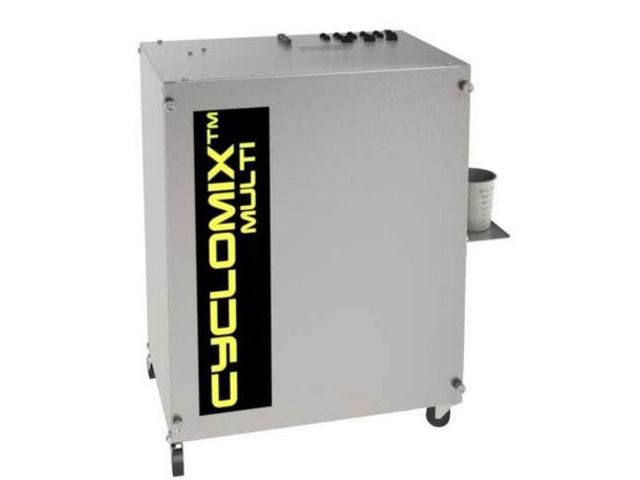

Cyclomix™ Multi Airmix® Plural Component Electronic Mixing & Dosing System

Paint pumps and paint application products

Vote

“ CYCLOMIX™ Multi PH metering system version is also available from 1 to 7 bases for acid catalysts coatings (pH 0.5) ”

Ask for a quote

Presentation

The Cyclomix™ Multi allows the user to dose, mix & continuously deliver two-component paints or adhesives.

Elimination of manual mixing errors
Material savings guaranteed
Always fresh material on demand

Performance

Consistently precise mixed material due to the unique static mixer design and direct injection - inject mix technology
Unsurpassed +/- 1% mixing accuracy even on the most demanding materials
Highly accuracy flowmeters

Productivity

Ideal for pot-life materials ≥ 15 minutes
Intuitive use - Touch-screen control
User-friendly with the Autowash (off production gun automatic monitoring)
Minimum material and solvent waste due to automatic flushing and material generation
The operator can control the system while in the spray booth using the glass kit option

Sustainability

Consistent product quality = Less rework cost
Lower cost of ownership
Reduces hazardous waste

Technical features

Electrical Power: 115/230-75 V - W Ratio : 06/1 > 30/1 X/1 Maximum Fluid Pressure: 2-200 (29-2900) bar (psi) Recommended Fluid Pressure : 2-175 (29-2537) bar (psi) Maximum Fluid Output : 2500 > 4000 cc/min (oz/min) Number of Products : 7-3-2 base-catalyst-solvent Maximum Fluid Temperature : 50 °C (°F) Air Inlet: F1/4 Fluid Inlet : M1/2 Fluid Outlet : F 1/4

Download the complete technical features
