Digital pH sensor | Orbipac CPF81D Endress+Hauser France

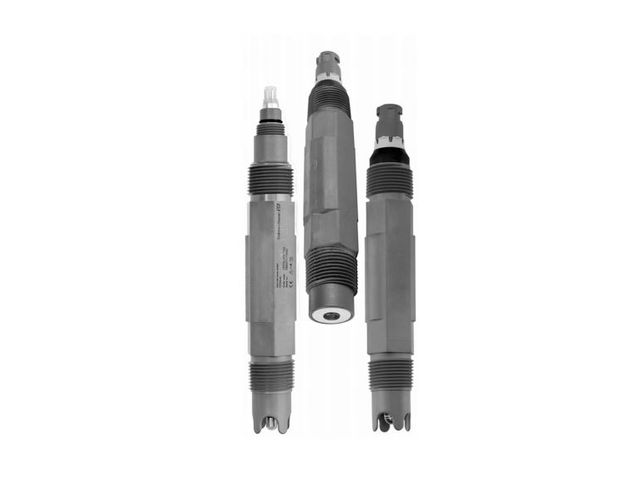

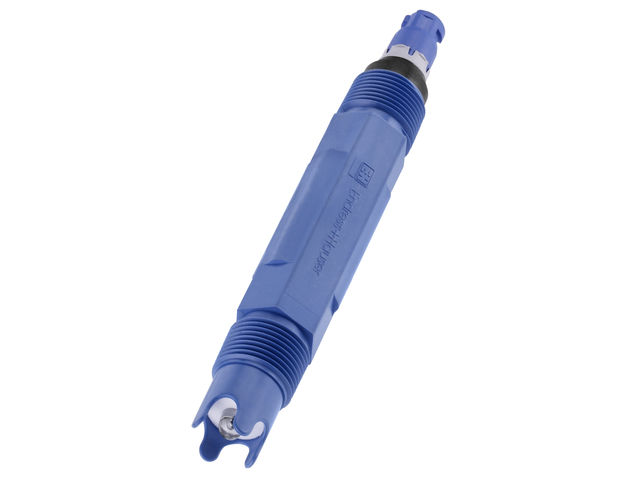

Digital pH sensor | Orbipac CPF81D

Vote

“ - Suitable for flow and immersion installation - Long time stable: Second electrolyte bridge for better protection against electrode poisoning ions such as S2- or CN- - Robust polymer housing protects against mechanical damage - Optional flat membrane suitable for high flow rates and fibrous media - Maximum process safety through non-contact inductive signal transmission - Enables predictive maintenance due to storage of sensor and process-specific data - Reduced operating costs due to minimized process downtime and extended sensor lifetime ”

Ask for a quote

Presentation

Memosens compact electrode for wastewater, primaries and metal industries

Orbipac CPF81D is the digital, simple solution for harsh environments. It measures reliably and accurately even in fibrous media and at high flow rates.

With its integrated assembly, the electrode saves space and time during flow or immersion installation.

Thanks to Memosens digital technology, CPF81D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

Technical features

Measuring principle : Glass electrode Application : Flotation, leaching, neutralization, outlet monitoring Characteristic : Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4 Measurement range : pH 0 to 14 Design : Compact electrode in PPS housing with NPT 3/4 Process temperature : Version LH: 0 to 110 °C (32 to 230 °F) / Version NN: 0 to 80 °C (32 to 170 °F) Process pressure : 1 to 10 bar abs at 80 °C (15 to 145 psi at 176 °F) Temperature sensor : Pt1000 Connection : Memosens plug Ingres protection : IP68

Download the complete technical features
