Sample probe for gas sampling GENIE 750

Gas analysis

“ - Genie Membrane Technology - Easy, quick, and safe insertion and extraction from pressurized systems without a special insertion device - Velocity tested by CEESI flow lab up to 200 ft/sec ”

Ask for a quote

Liquid carryover from the pipeline into the sample system should be prevented when sampling natural gas as it can directly impact the analysis and damage the analyzer.

Industry standards state that the equipment used to remove the liquid from the sample must be operated at flowing temperature and pressure conditions.

Genie® Probes™ provide a means to insert Genie® Membrane Technology™ directly into a pipeline for the purpose of separating unwanted liquid and particulate from the gas sample at flowing conditions.

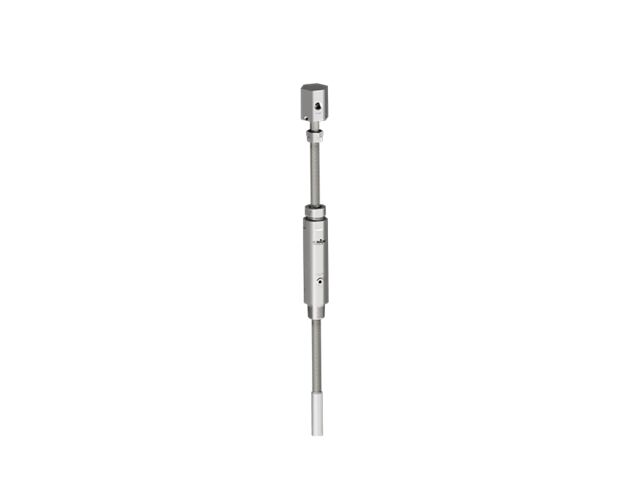

The Model 750 is an adjustable length, membrane tip probe designed to sample transmission quality natural gas. It can be inserted and extracted from a pressurized line through a full opening valve without the use of a special insertion device. This probe is offered with optional coatings from Silcotek™.

The Model 750 installation process is simple and straight forward. A low internal volume option is available for trace measurement applications or low sample flow rates.

A+ Corporation also offers a complete line of upstream and midstream gas and liquid sampling products. Contact the factory for more information.

Technical features

Unique, one piece body with Genie Membrane Technology Analytically Correct™ design Adjustable length: 20-120 cm Antifriction internal thread die Optional speed wrench for faster installation Hex adapter with ¼” female NPT outlet and integrated outlet shut-off valve

Download the complete technical features

Usage scope

Industry Continuous and composite gas sampling of transmission quality natural gas Sampling of various types of gases in the refinery & petrochemical industries Gas sampling of mixtures containing less than 30% hydrogen
