Syngas Sampling System | SyngasClean

Gas analysis

“ - Processing of highly loaded samples. - Modular for different types of analyzers. - Few maintenance: no filter element in cyclonic filter. - Available in fixed and mobile versions. ”
Ask for a quote Receive Documentation Contact the supplier

The main difficulty of the analysis of synthetic gas "Syngas" is the presence of tars. Indeed, aerosols and tar deposits generate significant maintenance and can damage analysers or make them less reliable.

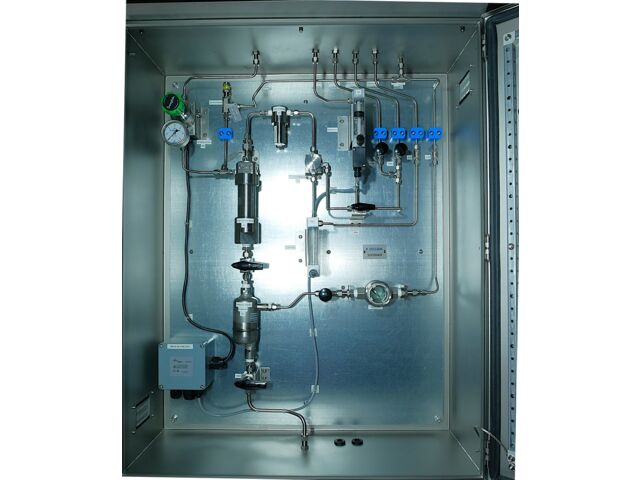

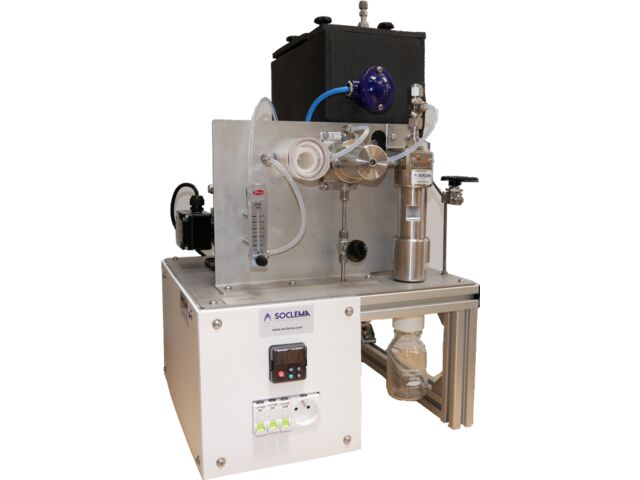

The SyngasClean system provides a turnkey solution for sampling syngas from pyrolysis gasification. It allows the sample to be conditioned before passing through the analyzers, by cooling it to condense the tars or oily residues, and separating them from the gas phase using a cyclonic separator. The system also separates the particles.

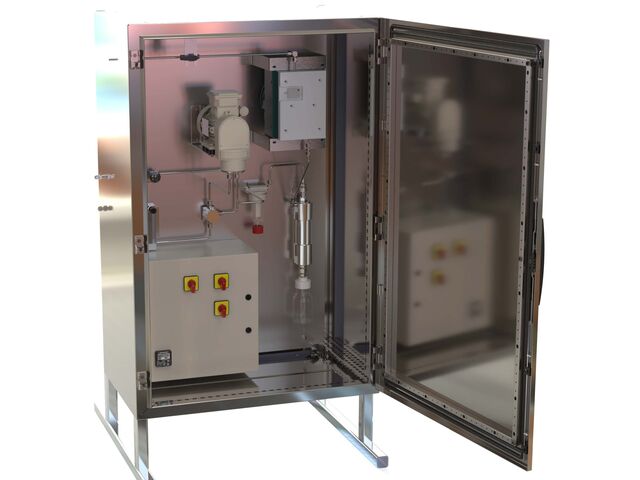

Several formats are possible for indoor or outdoor use.

Turnkey sampling system Thermoelectric Peltier heat exchanger Adjustable exchanger temperature and sampling flow rate Cyclonic filtration for separation of liquids and gas particles Second filtration level for analyser protection (2 μm) Sample suction and circulation pump 316L stainless steel valves, fittings and tubing Condensate recovery pot with optional level detection
Download the complete technical features

Pyrolysis Pyrogasification Syngas analysis Synthetic gas analysis

OTHER PRODUCTS GAS ANALYSIS FROM SOCLEMA

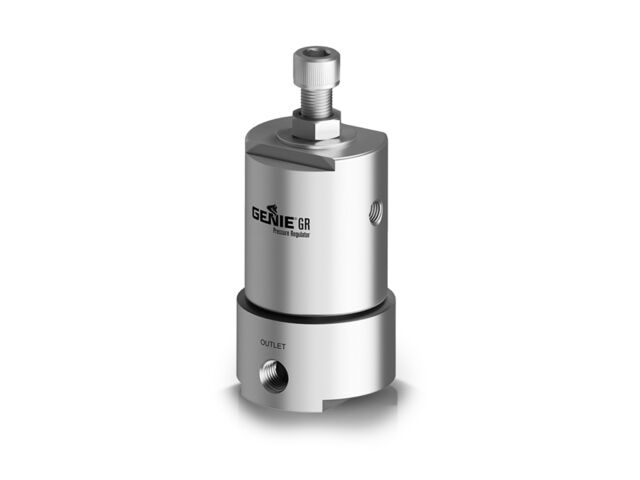

Single stage pressure regulator GENIE GR for gas analysis system
