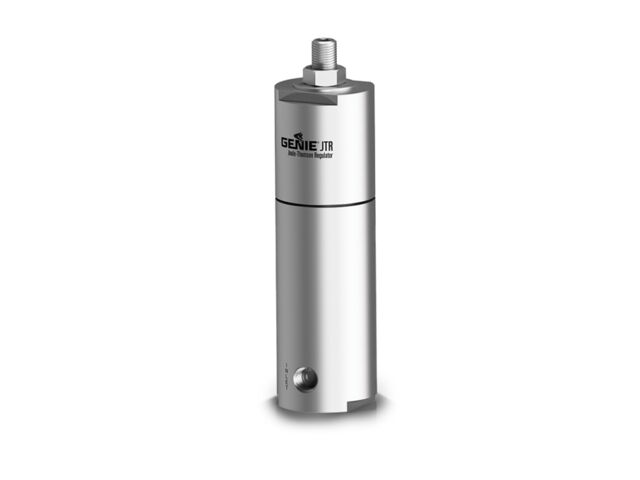

Unheated four-stage pressure regulator for gas analysis system | GENIE JTR

The Genie® Model JTR™ is a revolutionary product containing four stages of pressure regulation in one stainless steel housing, specifically designed for gas analytical systems. Gone are the days of having to purchase multiple pressure regulators and manifold them together in series!

The pressure regulation stages of the JTR™ employ a multi-piston design.  The first three stages are ratio controlled and the fourth stage is user adjustable. The advantage of the ratio controlled piston design is that it ensures the first three stages are always functional, even when the inlet supply pressure fluctuates. No more headaches of having to constantly readjust the set pressure of each stage.

Having multiple stages of pressure regulation helps to prevent condensation of the sample gas by compensating for the large amount of Joule-Thomson cooling that is experienced with a single stage regulator.  Preventing condensation of the sample gas has many benefits such as reducing regulator freeze-ups, preserving sample integrity, and minimizing analyzer down time and maintenance cost.

Unlike traditional single stage regulators, the JTR™ has the ability to autocorrect the outlet pressure during inlet pressure swings up to 5700 PSI. Inlet pressure swings commonly occur at natural gas storage facilities and during the use of calibration gas cylinders, making the JTR™ the regulator of choice for these applications.
