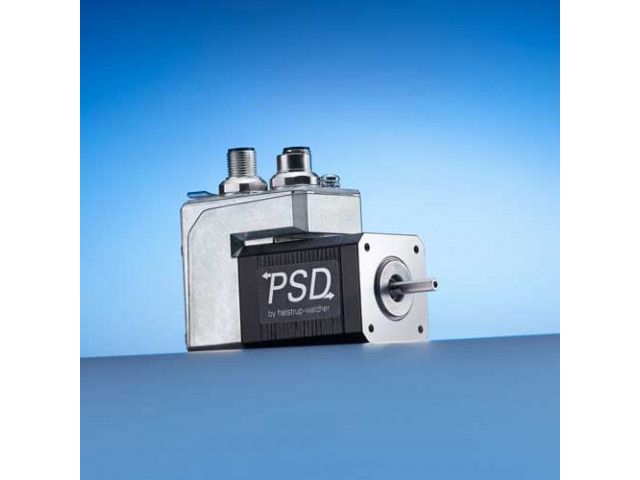

Direct Drive PSD 48 halstrup-walcher GmbH

Direct Drive PSD 48

Positioners and Tightening components

Vote

Ask for a quote Receive Documentation Contact the supplier

PSD 48 direct drive is a mechatronic system with integrated control, bus interface and absolute measurement system without battery. This drive is ideal for automatic format changeover. The stepper motor with integrated control and bus communication permits higher velocities at lower torques.
The PSD can be easily addressed by rotary switches (not for IO-Link). The instruments can be mounted on a spindle using the hollow shaft without the need for an additional coupling. The optional rotatable attachment housing allows you to attach the direct drives to the machine in any position, no angle plugs are required.

Nominal torque / nominal rated speed: 0,25 .. 1 Nm / 200 .. 50 rpm Positioning range: 986 .. 4026 rotations Protection class: IP 50 or IP 65 Design: Horizontal construction, Nema 17, space-saving, compact design Output shaft: 5 mm solid shaft or 8 or 14 mm hollow shaft (optional) Data interface: CANopen, EtherCAT, EtherNet/IP, IO-Link, PROFINET Special features: Precise position feedback thanks to an absolute measurement system without battery Special features: Address may be set using the bus or an address switch (not for IO-Link)
Download the complete technical features

Drop your rating on Direct Drive PSD 48

Your answer to the rating from -

OTHER PRODUCTS POSITIONERS AND TIGHTENING COMPONENTS FROM halstrup-walcher GmbH

Positioning drive PSE 30x-8

Positioning drive PSE 30x-8

 Ask for a quote
Positioning drive PSE 30x/32x-14

Positioning drive PSE 30x/32x-14

 Ask for a quote

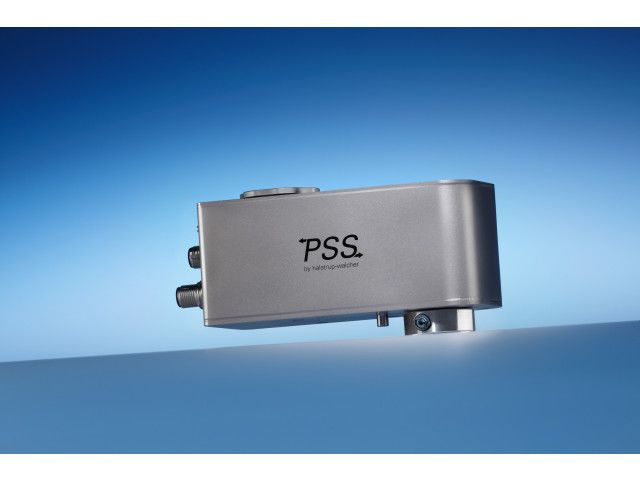

Positioning drive PSS 30x/32x-14
