Positioning drive HIPERDRIVE HDA 70 halstrup-walcher GmbH

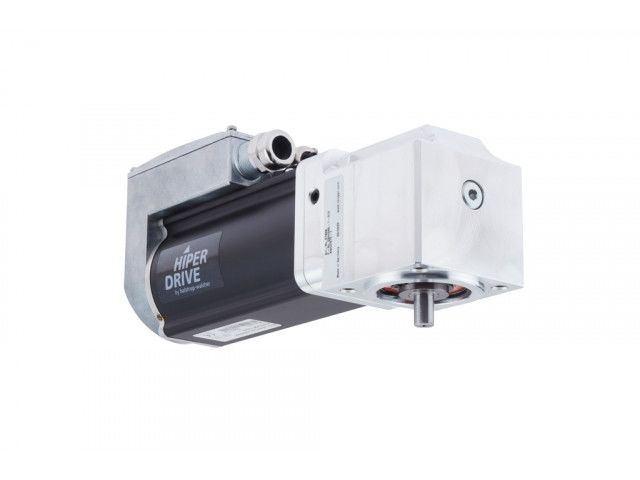

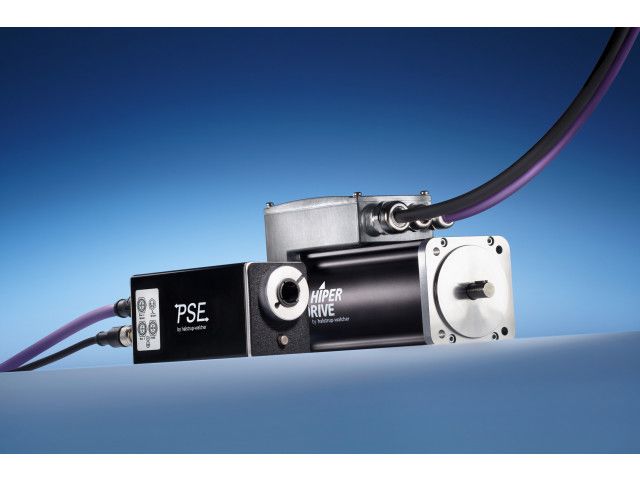

Positioning drive HIPERDRIVE HDA 70

Positioners and Tightening components

Vote

Ask for a quote Receive Documentation Contact the supplier

The HIPERDRIVE HDA 70 positioning drive allows adjustment procedures for positioning and auxiliary axes to be performed efficiently, at low cost and with a high degree of precision. The HIPERDRIVE is available with Industrial Ethernet interface for direct connection to a control module. Status massages retrievable via bus. With an durable EC motor.

Nominal torque / Nominal rated speed: 15 Nm / 27 rpm Self-holding torque: 25 Nm Protection class: IP 65 Output shaft: 10 mm solid shaft with feather key, 10 /12 mm hollow shaft (bevel gear) Data interface: PROFIBUS DP, EtherCAT, PROFINET, EtherNet/IP, RS 485 Jog keys: Jog key operated for easy start up, even without control module
Download the complete technical features
