Dosing controller - Net8

Control device

Vote

Ask for a quote

Presentation

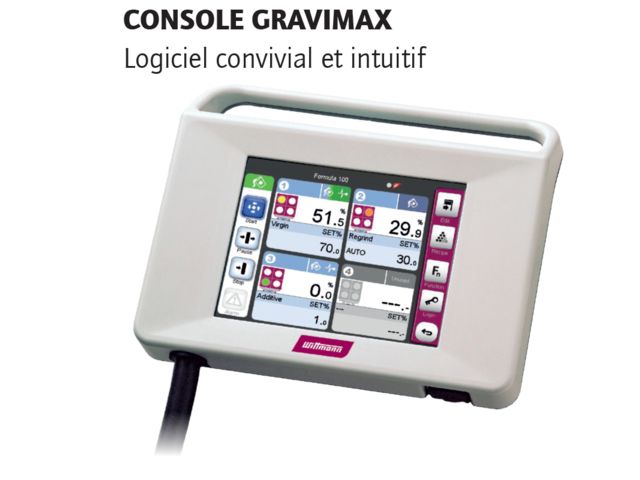

The Net8 blender control is designed for simplicity, ease-of-use and high efficiency.

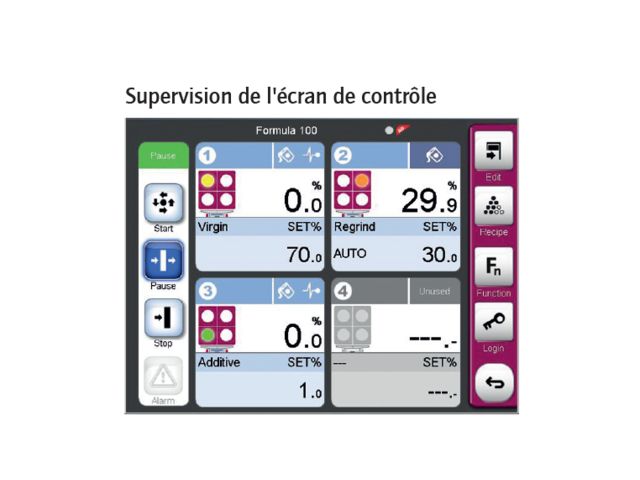

The large easy-to-see buttons on the touch screen make it easy to operate in all types of light conditions and ensures the operator has a large surface area to make changes or adjustments in the operation of the blender.

Standard features

Control of up to 8 components.
Dosing-technology: Precise metering through adaptive control algorithms.
RTLS (Real Time Live Scale) technology.
"On the fly" Feature: Change recipes and parameters without stopping production.
Reports: Cycle, total run and inventory reports.
Connectivity options (Ethernet).
SmartRegrind mode.
Timed or continuous mixing.
The handling of the user interface is conform to the other WITTMANN manual control elements.
Percent preset.
Operates in metric or imperial.
Display operating conditions.
Materials identification.
Recipe maintenance.
Preset batch count.
Special dosing algorithms are loosening bridge formations of material in the hoppers.
Security: 3 adjustable security levels with freely selectable access codes.
High accuracy mode: Automatic adjustment of ratio to avoid an overdosing of expensive additives.
Auto tuning: Independent adjustment of the dosing behaviour to varying flow characteristics of different materials.
Secure mounting of the load cells for most exact measurement and long-lasting use.
Control Panel with standard electrical components for reliable operation and easy maintenance.
Power supply: 110 V / 230 V / 1 / 50–60 Hz.
