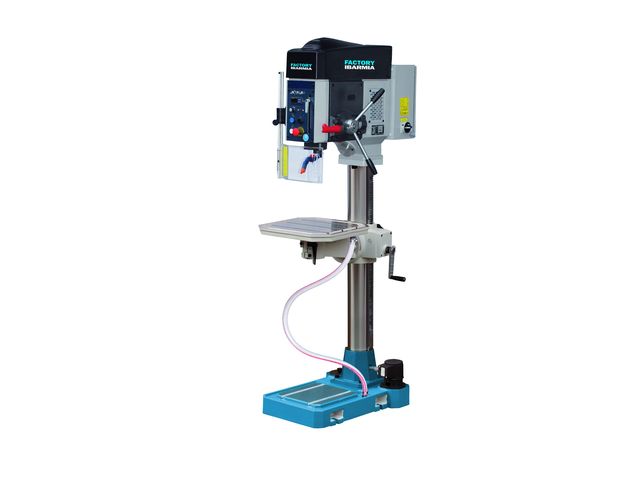

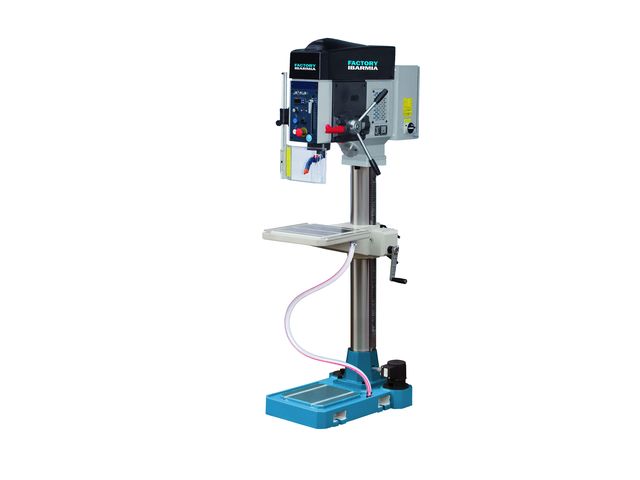

Drilling machine IBARMIA Factory IZA-35 ERLO GROUP

Drilling machine IBARMIA Factory IZA-35

Column drill

Vote

“ Excellent quality-price relationship supported by the company IBARMIA that is the world leader in manufacture of drilling and tapping machines since 1961. ”
Ask for a quote Receive Documentation Contact the supplier

STANDARD EQUIPMENT
Depth scale and adjustable depth stop
Automatic tool ejector
Low voltage electric equipment
Security microswitch on cover
Electronic inverter with digital rpm counter
Emergency  STOP push button
Spindle reversing switch
Electric equipment integrated on machine's head
Safety drill guard with microswitch
Automatic feed reversing system for tapping
Table with "T" slots
"CE" mark

TECHNICAL CHARACTERISTICS:  Maximum drilling capacity on 60kg steel                                                                                Ø mm 35 Maximum drilling capacity on 200HB. Cast iron                                                                    Ø mm 40 Maximum tapping capacity on 60 kg. Stell                                                                                  mm M 27 Maximum tapping capacity on 200 HB. Cast iron                                                                      mm M 33 Morse Taper MT                                                                                                                                 Nr. 4 Drilling depth                                                                                                                                    mm 150 Nr. and range of automatic feeds                                                                                          mm/rev. (3)0.10-0.20-0.30 Feed Automatic Motor power                                                                                                                                        CV 4 Transmission Belt pullys Nr. of speeds Variable by electronic inverter Speed range with motor 1500 rpm 50Hz 3Ph                                                                            rpm 100 - 2000 Table dimensions (W x L)                                                                                                             mm 400 x 420 Column diameter                                                                                                                             mm                                                                       125 Distance from spindle centre to column face                                                                           mm 300 Distance spindle - table                                                                                                                mm Min.90/Max.890 Distance spindle - base                                                                                                                  kg 1.250 Net weight                                                                                                                                          kg 360 Gross weight with packing                                                                                                               kg 410 Packing dimensions (lengh x width x height)                                                                              m3 1.52
