Dry scroll pump 1ph 50/60 Hz : nXDS6i

Vacuum pump

Vote

Ask for a quote

Presentation

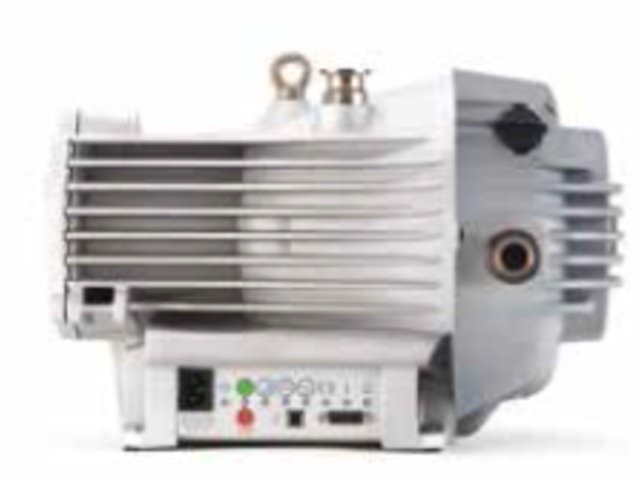

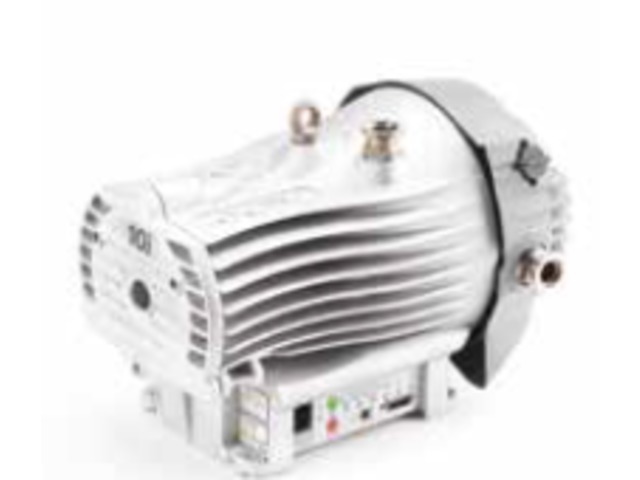

With exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features, the nXDS dry scroll pump is the best performing pump in its class.

nXDS improves on the original XDS pump technology by offering increased pumping speeds, combined with lower ultimate pressures, low power consumption and reduced noise. The gas ballast allows for pumping of condensable vapours, including water, solvents, dilute acids and bases. nXDS pumps feature the very latest in tip seal technology, giving a significantly longer life between tip seal changes.

nXDS-C has been modified so that it is more suitable for use on vapour handling processes and may be used in some applications involving corrosive substances. This chemically resistant version is fitted with Chemraz® internal valves and stainless steel fittings.

nXDS-R has the gas ballast blanked off so it cannot be accidently opened. This is useful for applications such as rare gas recirculation or gas recovery.

Technical features

Nominal rotational speed : 1800 rpm Displacement : 6.2 m3h-1 / 3.6 ft3min-1 Peak pumping speed : 6.2 m3h-1 / 3.6 ft3min-1 Ultimate vacuum (total pressure) : 0.020 mbar / 0.015 Torr Minimum standby rotational speed : 1200 rpm Speed control resolution (percentage of full rotation speed) : 1% Pumping speed at minimum rotational speed : 4.1 Maximum continuous inlet pressure : 200 mbar Motor power 1-ph : 260 W Recommended fuse : 10A, 250Vac rms

Download the complete technical features
