e-MARK EVO XL | Cordless dot peen marking gun

Turnkey Assembly System

“ Portable, Large marking window, Robust ”

Ask for a quote

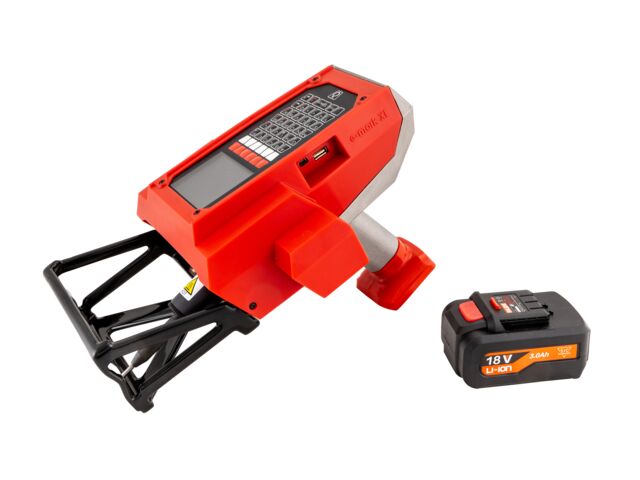

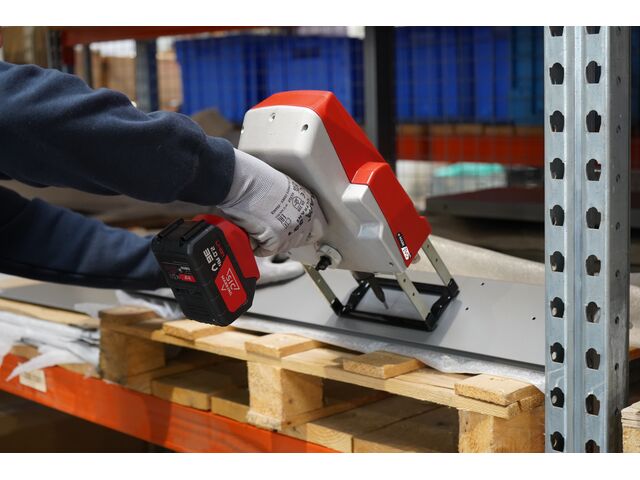

The e-MARK EVO XL is a portable, cordless dot peen marking machine designed for applications that require a large marking area of 120 x 40 mm.

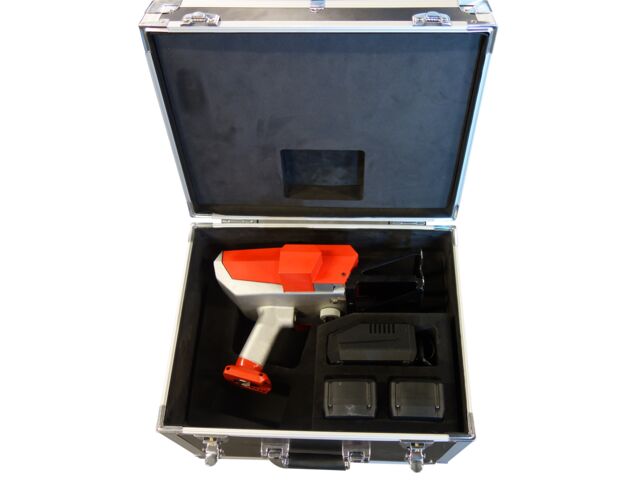

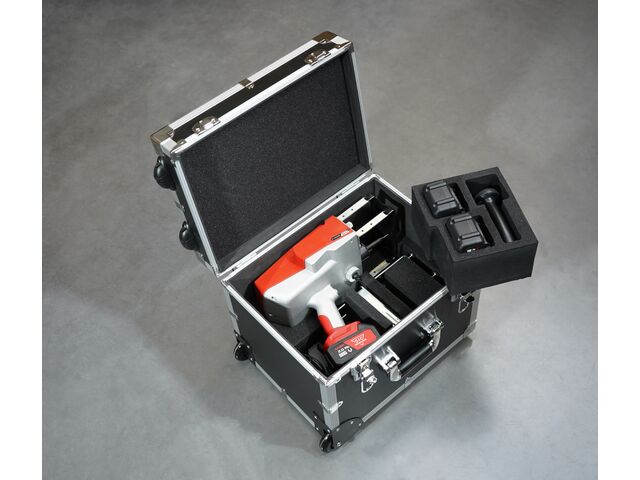

Thanks to its built-in 36 V battery, it is fully self-contained and can be used for up to 3 hours continuously. It comes with two batteries and a fast charger, so you can keep working with one battery while the other is charging. Everything is supplied in a suitable carrying case for easy transport and on-site use.

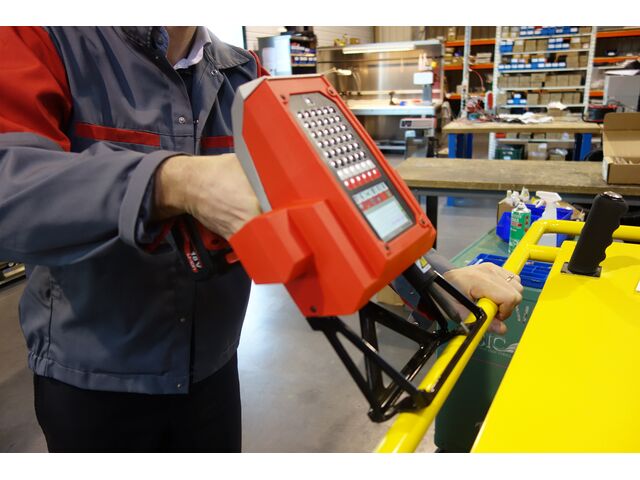

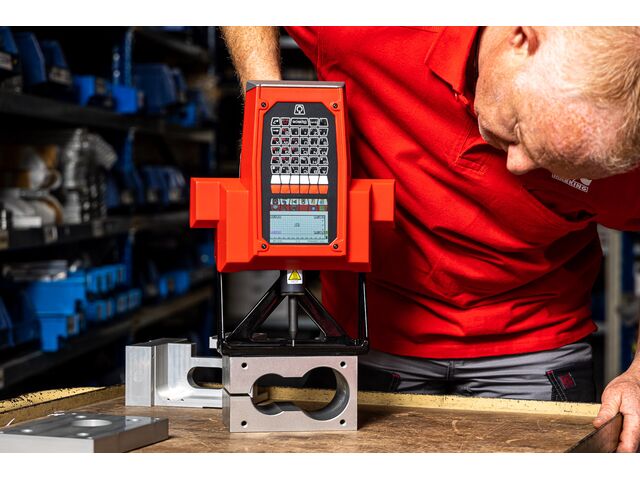

Its robust design, with an aluminium cast body and handle, makes it especially suitable for demanding industrial environments. Its high marking force also makes it ideal for marking heavy and large parts.

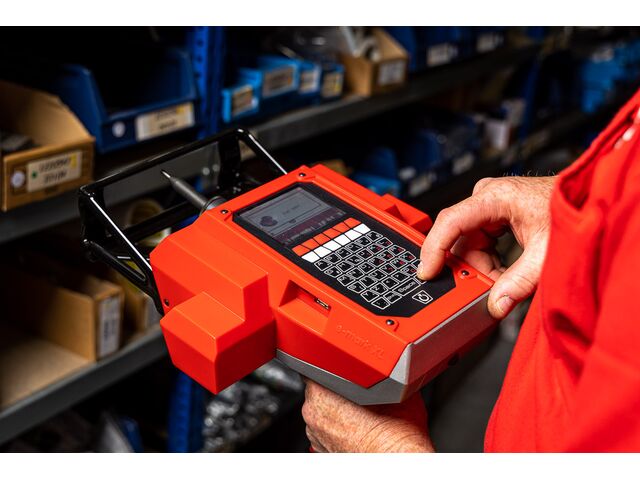

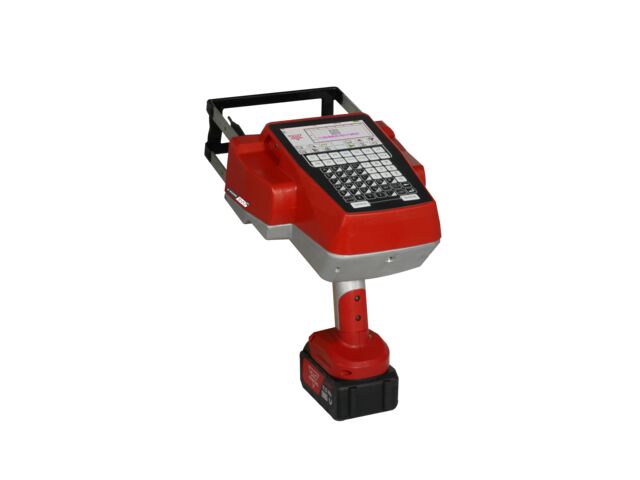

Despite its strong construction, the e-MARK EVO XL remains compact and lightweight at 4.2 kg. It is easy to handle thanks to its built-in programming interface and industrial membrane keypad.

It can create different types of markings: alphanumeric text, logos, 2D Data Matrix codes and QR codes.

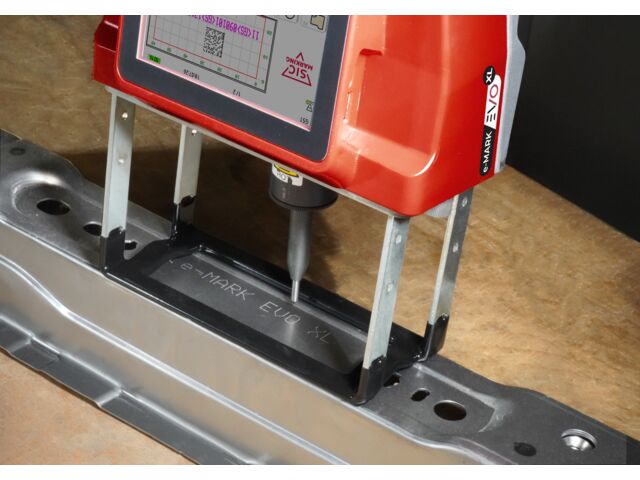

Dot peen technology provides permanent, reliable and durable marking directly into the material. A tungsten carbide stylus creates a series of dots at very high speed.

Optional accessories:

Booster option
3 interchangeable support faces
Barcode reader
Column stand

Technical features

Marking window : 120 x 40 mm External dimensions : 330 x 254 x 270 mm Weight : 3,6 kg Stylus : Tungsten carbide Positioning ald : Position memory Operating life : From 1 h (intensive use) to one day in normal use Battery charging time : 1 hour Memory : 100 MB Power : 100W Battery : Li-ion 18V (4 hours normal operation)

Download the complete technical features
