I-speed dot peen marking head

Turnkey Assembly System

Vote

“ ROBUST AND RELIABLE • Reduced maintenance • Design for intensive use in industrial environments POWERFUL • Accurate guides • Marking uniformity over the entire marking area • Marking on all types of material and difficult surface conditions • 3 mm tolerance of stylus / part variation distance ”

Ask for a quote

Presentation

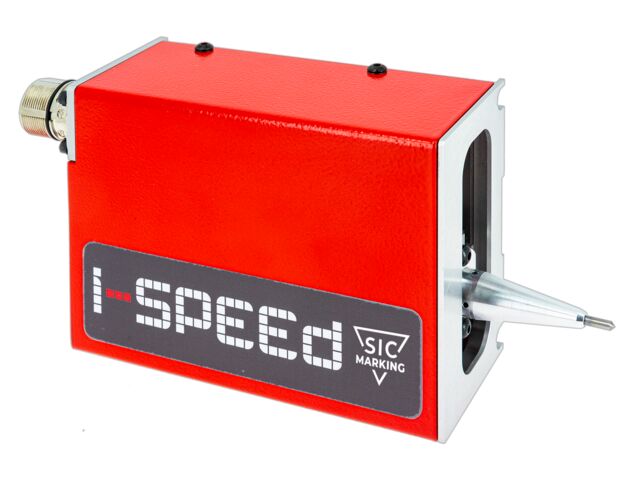

The i-speed machine, which is ultra compact and fast, uses continuous vibrating technology which consists of marking parts in a continuous line and meets an increasingly specific need of the companies in the industrial sector.

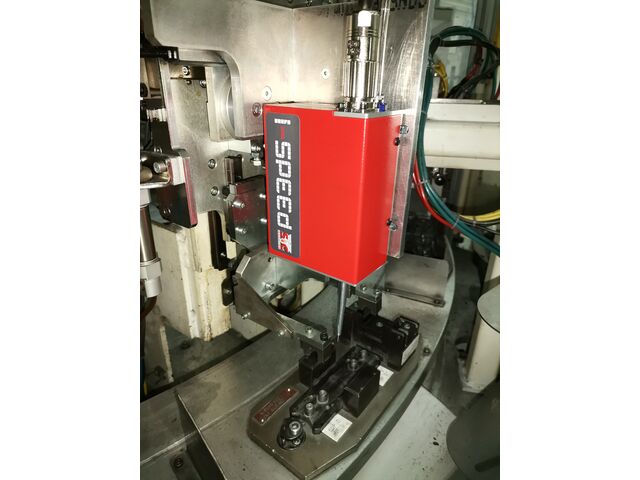

Perfectly suited for very high-speed production lines, the i-speed is capable of marking up to 10 characters per second. Its small dimensions (218 x 107 x 62 mm - 8.6 x 4.2 x 2.4 in) allow it to fit easily in a minimum of space.

Subject to a thorough study, these characteristics make the i-speed one of the fastest and most compact machines on the market.

The i-speed uses a pneumatic stylus that eliminates overheating problems and allows the machine to be used at very high speeds. Moreover, the absence of consumables makes it a very affordable machine.

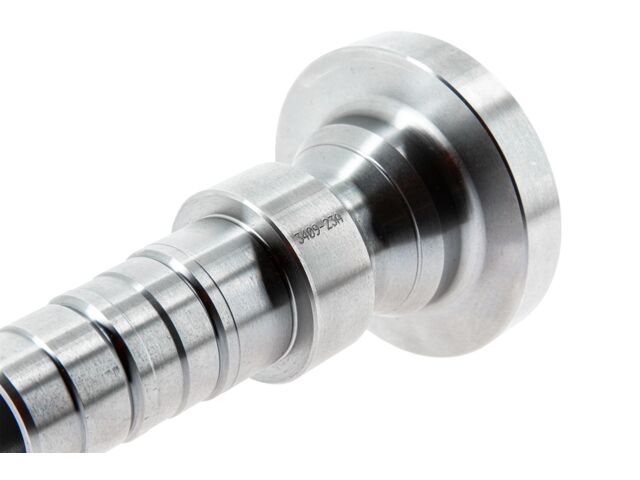

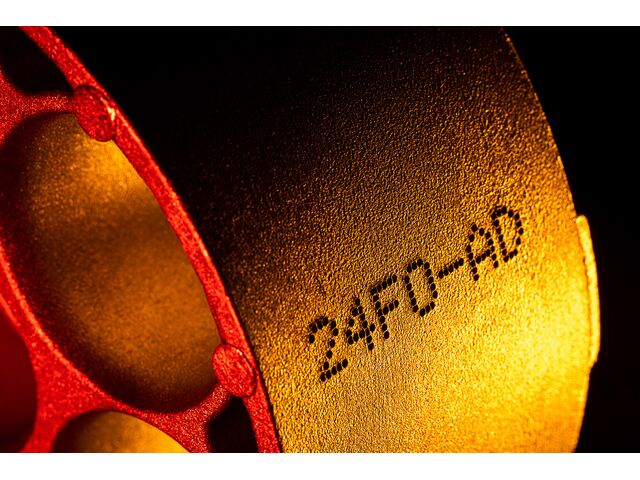

The integrated i-speed system allows very fast permanent dotpeen marking on all types of materials, from plastic to treated steel up to 62 Hrc. The quality and precision of the guidance, the wide tolerance of the stylus/part distance, its speed and the power of the integrated software make it a high-performance device.

Technical features

Marking Window: 50 x 20mm - 1.9 x 0.8 in Dimensions: 218 x 107 x 62 mm - 8.6 x 4.2 x 2.4 in Weight: 1.7 kg - 2.2 lbs Connecting Cable: 5m or 10m - 16.4 or 32.8 ft) Stylus: Tungsten Carbide 60 mm - 2.4 in Power: compressed air - 6 bar

Download the complete technical features
