Electromagnetic flowmeter | Picomag

Electromagnetic flow meter

Vote

“ - Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection - Fewer measuring points necessary – simultaneous flow, conductivity and temperature measurement - Cost-efficient specialist for use in tight spaces e.g. skids – sensor and transmitter in one housing - Quick offline configuration check – unique, comfortable knock functionality - Simple device access through its whole lifecycle – no manual needed due to intuitive SmartBlue App - Instant local process monitoring – large, user-friendly display of all measurement activities - Flexible integration into all fieldbus systems – plug-and-play device with IO-Link ”

Ask for a quote

Presentation

Smart magmeter for utilities – intuitive · convenient · multivariable

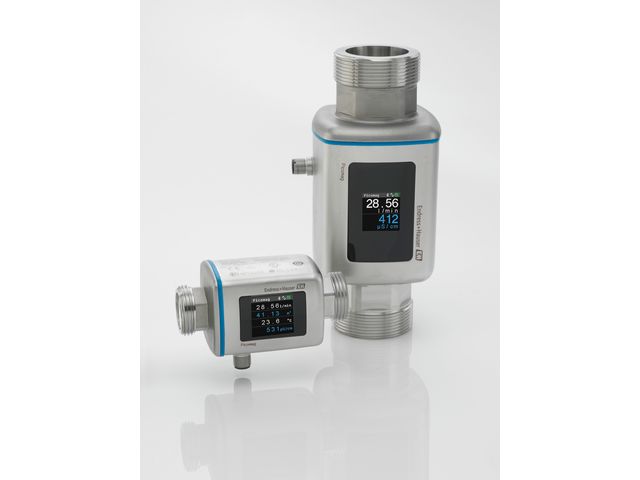

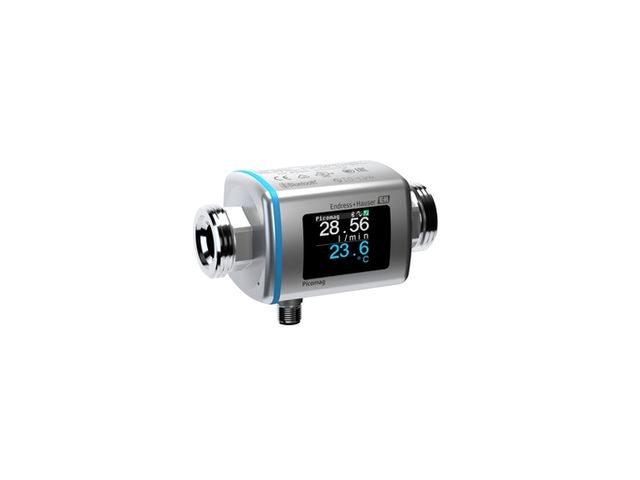

Picomag is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag for its flexible installation capabilities.

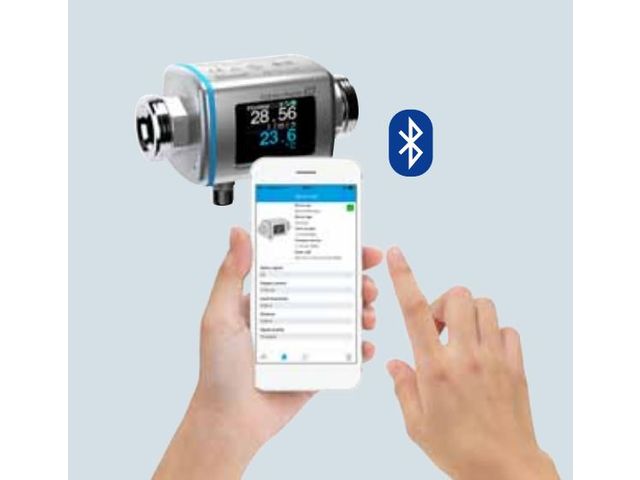

Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.

Technical features

Measuring Principle: Electromagnetic Nominal diameter range: DN15 to 50 (1/2 to 2'') Measured variables: Volume flow, Temperature, Conductivity Measuring range: up to 750 l/min High shock and vibration resistance Degree of protection: IP65/67 Empty pipe detection Wireless remote access via Bluetooth SmartBlue app IO-Link and various I/Os for all line-sizes 1.4'' TFT color display with backlight

Download the complete technical features

Usage scope

The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity Ideal for measurement of conductive liquids in many utility applications across all industries.
