ELOG DATA LOGGER, ALL ENERGY

Data acquisition systems

Vote

“ Open data logger - all equipment manufacturers Remote retrieval of all energy data Data file export for analytical applications Local backup of data files covering several years Simplified setup via web pages ”

Ask for a quote

Presentation

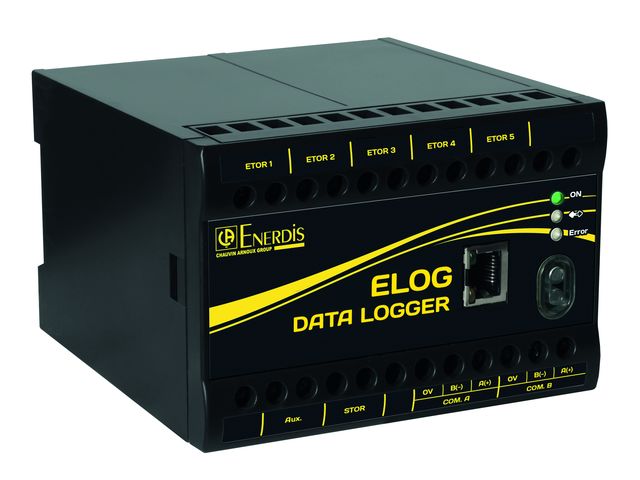

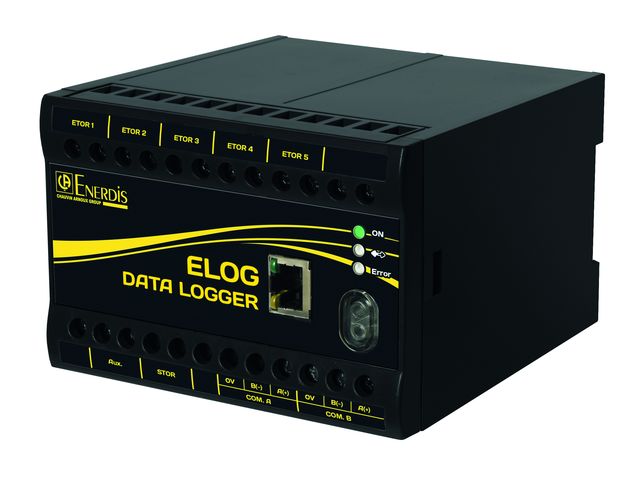

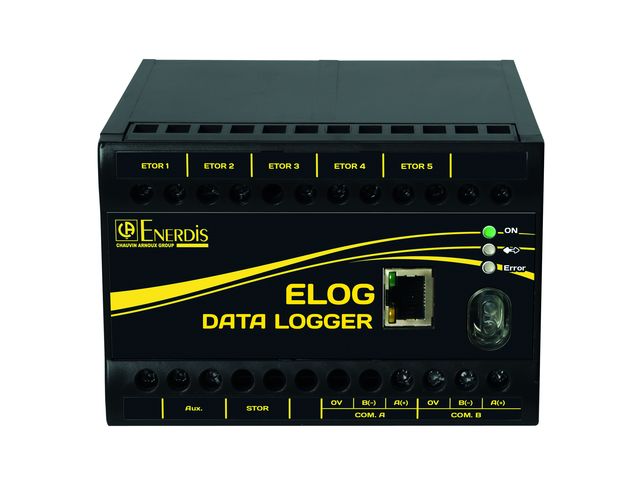

ELOG DATA LOGGER from Enerdis^®, a high-performance, stand-alone, economical data logger open to all your analytical tools.
Collect, record and export all your energy data
Essential for energy data monitoring

COLLECT
Several communication ports for remote data retrieval from the multi-function, multi-manufacturer equipment on an installation (meters, PLCs, power monitors, transducers)

RECORD
Recording of up to 100 variables
Configurable recording periodicity (5 s to each variable
History of last 3 months

CALCULATE

Integrated calculation functions for the variables so that you can view and record data which can be processed directly (ax+b, x/y)

EXPORT
Data file export (csv, xml) is fully configurable (choice of variables, file formats, transmission periodicity, FTP servers)
Specific formats can be developed on request

ANALYZE
The csv and xml files and the web services offer a wide range of possibilities for integration and analysis of the data (standard or specific tools) including Excel, Word, specialized analysis software, Web pages, ERP, Big Data, TBM, CTM and E.online^® 3

Technical features

Auxiliary power supply: 80 to 265 Vac - 10 VA - 42.5 to 69 Hz / 80 to 375 Vdc - 7 W 5 Pulse / On-off inputs Communication: 2 x RS485 Modbus ports– 1 Ethernet Modbus TCP port, http Storage of recordings: Up to 3 months of raw data Export to remote ftp servers: csv or xml files – Up to 15 tasks simultaneously Local ftp server; Storage capacity: 500 MB Number of recorded variables: Up to 100 Compliance with standards: IEC 62052-11 - IEC 61000-4-2/3/4/5/6/8/11 - CISPR22 Weight / Dimensions : 560 g / 120.5 x 120 x 81 mm (D x L x H) Mounting : On DIN rail

Download the complete technical features
