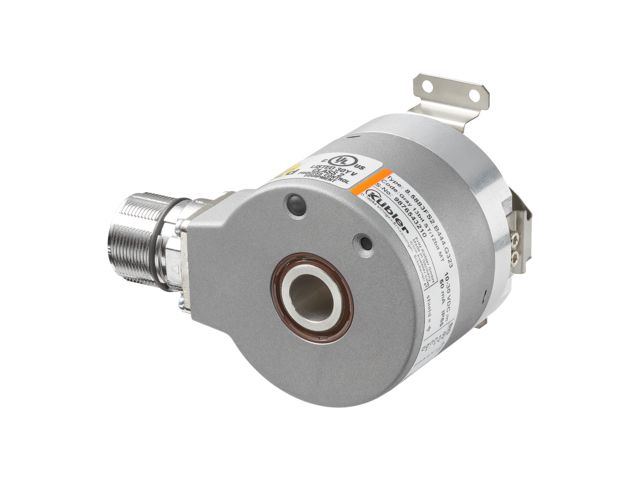

Encoders Absolute multiturn Sendix 5883FS2, Ø 58 mm, optical, hollow shaft. FRITZ KÜBLER SARL

Encoders Absolute multiturn Sendix 5883FS2, Ø 58 mm, optical, hollow shaft.

Absolute encoders

Vote

“ Safe position acquisition up to SIL2/PLd. ”
Ask for a quote Receive Documentation Contact the supplier

The absolute encoders Singleturn Sendix 5863FS2 / 5883FS2 are suitable for use in safety-related applications up to SIL2 according to EN 61800-5-2 or PLd according to EN ISO 13849-1. The specially interlocked bearings in the Safety Lock™ design, the high integration density of the OptoASIC-based components and the stable die-cast housing make them perfect for demanding outdoor applications up to IP67.

Dimension: Ø 58 mm Shaft type max. 14 mm hollow shaft, through Protection level max. IP67 Connection types : Radial cable, Câble tangentiel, M23 connector radial Measuring principle : optical Resolution max.: 2.048 ppr incremental17 bits singleturn12 bits multiturn Interfaces: SSI + 2048 ppr SinCos, BiSS + 2048 ppr SinCos
Download the complete technical features
