Encoders Incremental RLI20, Ø 30 mm. FRITZ KÜBLER SARL

Encoders Incremental RLI20, Ø 30 mm.

Incremental encoders

Vote

“ Bearingless encoder for shaft diameter up to 30 mm. ”
Ask for a quote Receive Documentation Contact the supplier

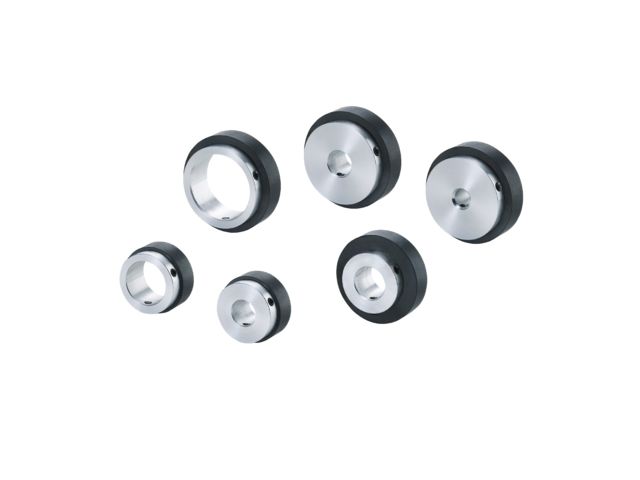

The RLI20 bearingless encoder, consisting of magnetic ring and sensor head, with its installation depth of only 16 mm is ideally suited for narrow installation possibilities. Its contactless measuring principle enables error-free operation even under adverse environmental conditions and a long service life. IP68 / IP69k protection, special encapsulation technology, and tested resistance to cyclic humidity and heat provide maximum reliability even in unprotected outdoor use. This bearingless encoder can be mounted on shafts up to max. 30 mm diameter.

Dimension: Ø mm Shaft type max. 30 mm hollow shaft, through Protection level max. IP69k Connection types : Radial cable Measuring principle : magnetic Resolution max.: 3.600 ppr incremental Interfaces: Push-pull, TTL / RS422
Download the complete technical features
