Encoders Incremental Sendix H120, Heavy Duty, large hollow shaft up to 28 mm, 100 mm,optical

Incremental encoders

Vote

“ For heavy duty applications extremely robust hollow shaft encoders. ”

Ask for a quote

Presentation

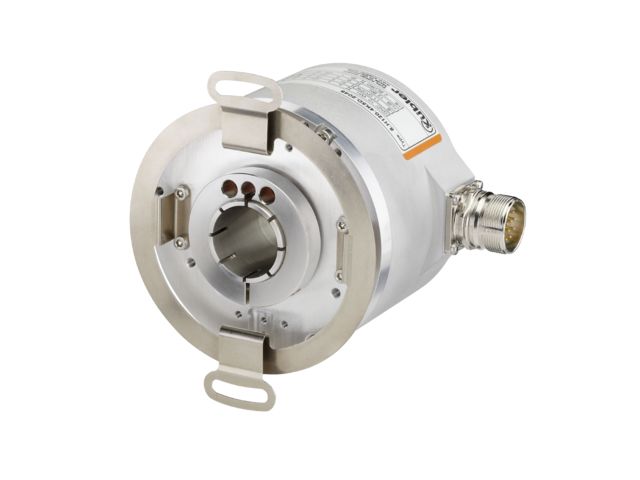

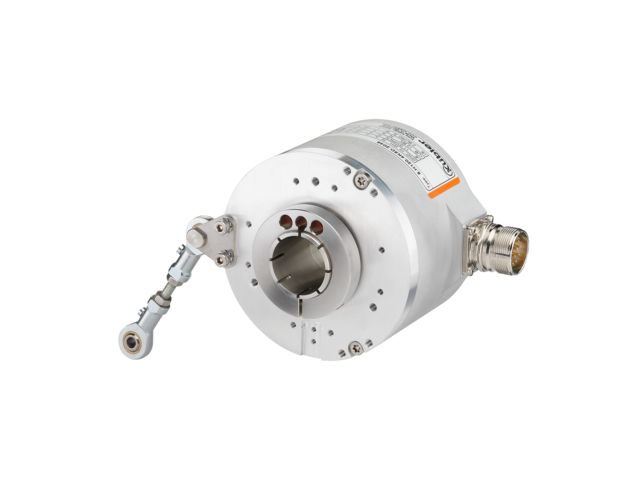

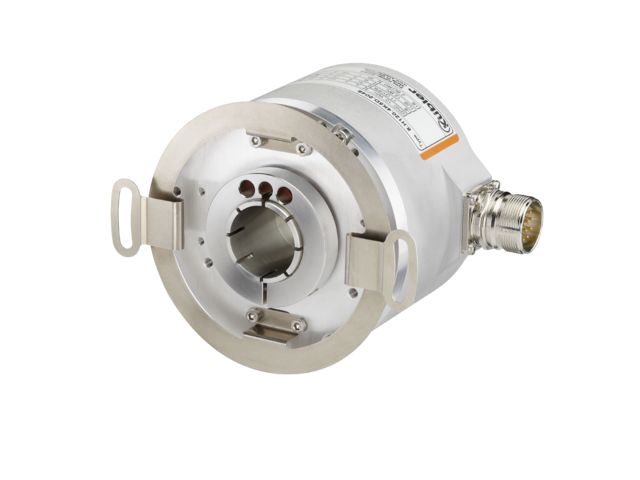

The incremental encoder Sendix H120 is ideal for large motors and generators. It is highly accurate and extremely robust thanks to HD-Safety-Lock™ - the Heavy Duty hollow shaft design of the latest generation with strong bearing construction and integrated bearing insulation. The double-protected shaft, the wide temperature range and the high protection enable use even under the most adverse conditions. The particularly large hollow shaft up to 28 mm, the variety of mounting solutions and connection variants offer maximum flexibility during installation.

Technical features

Dimension: diam100 mm Shaft type max. 12 mm hollow shaft, blind hole Protection level max. IP67 Connection types : Radial cable, Fiber optics, M23 connector radial, M12 connector radial, Terminal box Measuring principle : optical Resolution max.: 5.000 ppr incremental Interfaces: Push-pull, TTL / RS422, Fiber optics

Download the complete technical features
