FRITZ KÜBLER SARL

Encoders Incremental RLI500, shaft diameter 350 mm, zero pulse. FRITZ KÜBLER SARL

Encoders Incremental RLI500, shaft diameter 350 mm, zero pulse.

Incremental encoders

Vote

“ RLI500 ”
Ask for a quote Receive Documentation Contact the supplier

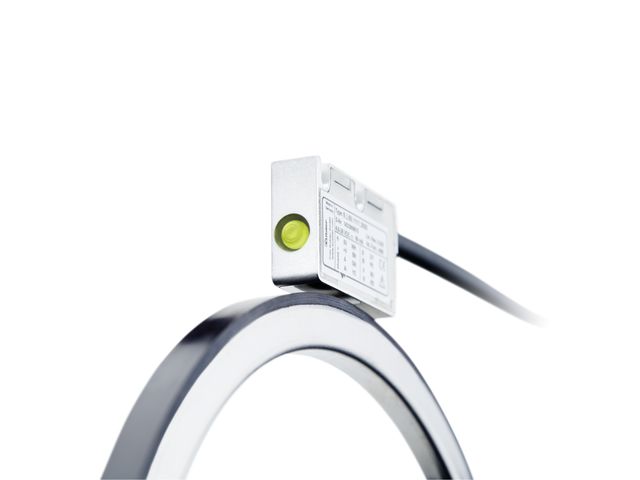

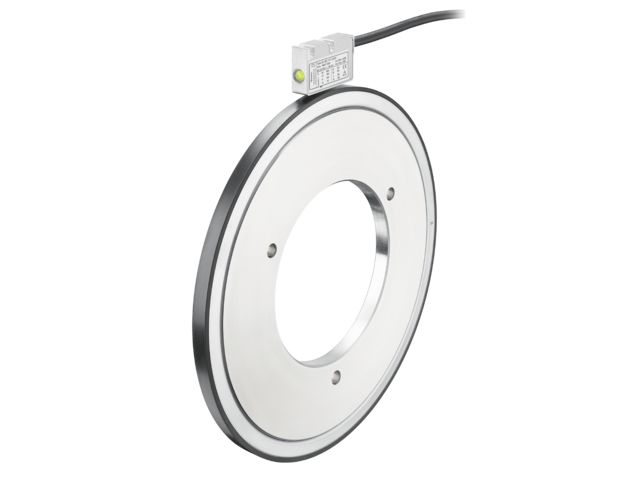

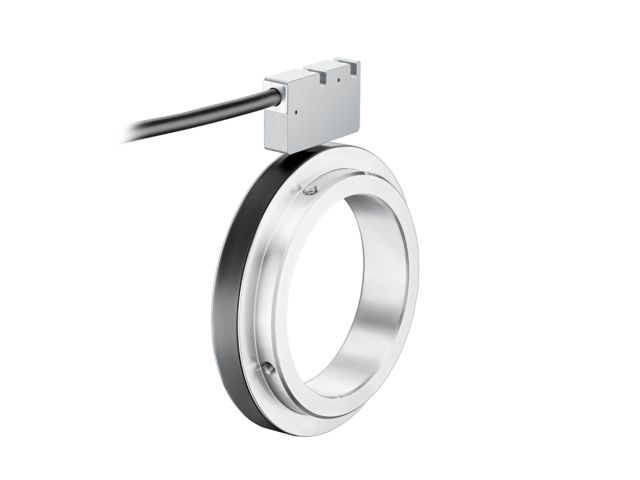

The bearingless encoder RLI500 with zero pulse, consisting of magnetic ring and sensor head, with its installation depth of min. 10 mm is ideally suited for confined installation possibilities. Its contactless measuring principle enables error-free operation even under adverse environmental conditions and a long service life. IP68 / IP69k protection, special encapsulation technology, and tested resistance to cyclic humidity and heat provide maximum reliability even in unprotected outdoor use. This bearingless encoder can be mounted on shafts up to max. 350 mm diameter.

Dimension: Ø mm Shaft type max. 70 mm hollow shaft, through Protection level max. IP69k Connection types : Radial cable Measuring principle : magnetic Resolution max.: 6.400 ppr incremental Interfaces: Push-pull, TTL / RS422
Download the complete technical features
