Machine électroérosion fil grande capacité HB600

HB800 Large-Capacity Wire EDM Machine

“ Very large capacity up to 2000 kg, high precision, long operation autonomy, and excellent industrial performance. ”

Ask for a quote

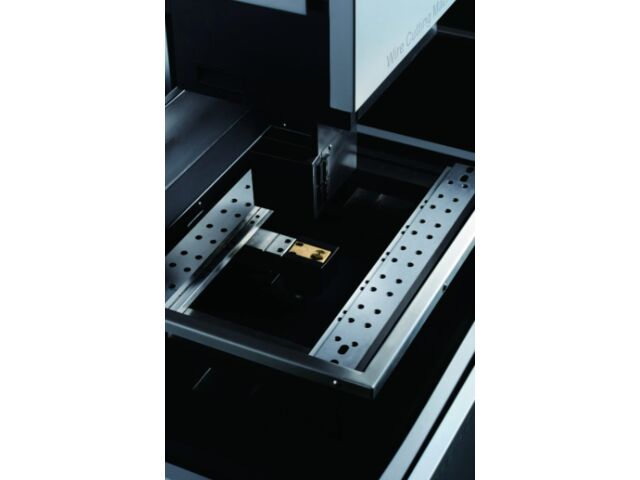

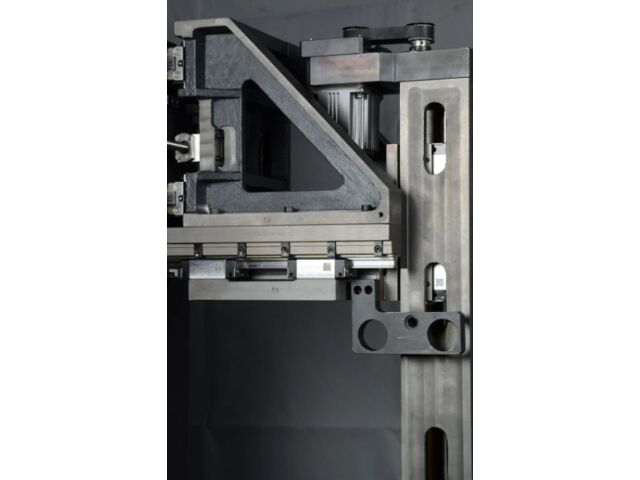

The HB800 molybdenum wire EDM machine is designed for large parts and demanding industrial applications.

Its large capacity allows the machining of heavy parts up to 2000 kg with excellent precision and a fine surface finish.

Efficient, cost-effective, and autonomous, it combines high cutting speed, reliability, and ease of use.

Technical features

X/Y travel: 800 × 600 mm Max workpiece thickness: 500 mm Table: 1710 × 935 × 500 mm Max workpiece weight: 2000 kg Cutting speed ≥ 300 mm²/min Surface finish: Ra ≤ 0.6 µm Wire Ø 0.18 mm Multi-filtration: 0.005 mm 4 digital axes ISO

Usage scope

Industry

OTHER PRODUCTS ELECTRIC EROSION FROM RBSystem - Electroérosion & Laser

Linear Motor Wire Drawing Machine – EXCETEK NP600L Plus

Ask for a quote

Linear Motor Wire EDM Machine | EXCETEK NP PLUS Series – NP1280L Plus

Ask for a quote

Wire EDM Machine | EXCETEK V500GPlus – G Plus Series

Ask for a quote

High-Capacity Wire EDM Machine | EXCETEK V850GPlus – G Plus Series

Ask for a quote

Consumables - FILTERS

Ask for a quote

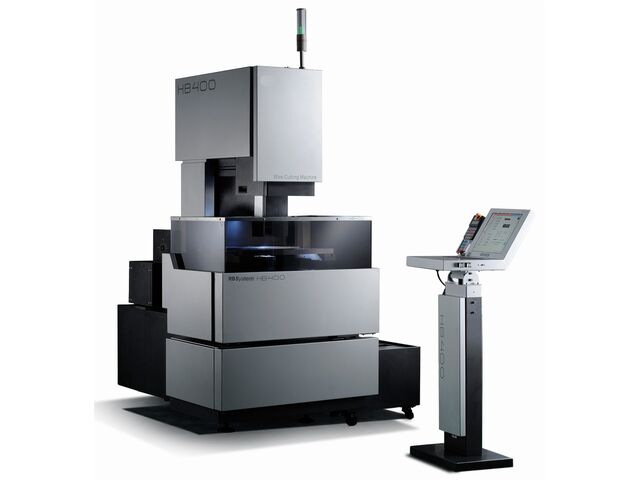

HB400 Compact Wire EDM Machine
