KNUTH

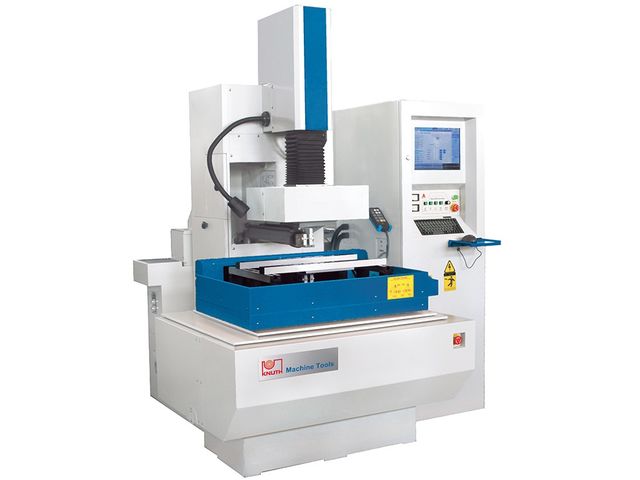

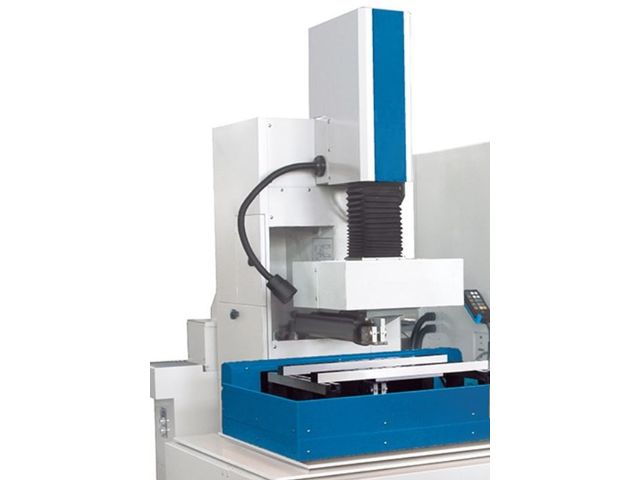

CNC Electric Discharge Machine - DEM 320 A

CNC Electric Discharge Machine - DEM 320 A - KNUTH

CNC Electric Discharge Machine - DEM 320 A - Wire cutter

CNC Electric Discharge Machine - DEM 320 A - produit présenté par KNUTH

CNC Electric Discharge Machine - DEM 320 A

Wire cutter

“ High precision and quality plus excellent price/performance ratio. ”

Ask for a quote

Presentation

• Great alternative for wire electrical discharge machines - with excellent cutting performance and cost-effectiveness.
• Extra rigid cast-iron frame made with stress-free annealing in T Design.
• THK Precision Linear Guides (Japan) on all axes.
• All machines are measured using laser interferometer systems and subjected to strictest quality controls.
• Low-maintenance modular construction.
• Precision preloaded ball screws for lasting mechanical precision.

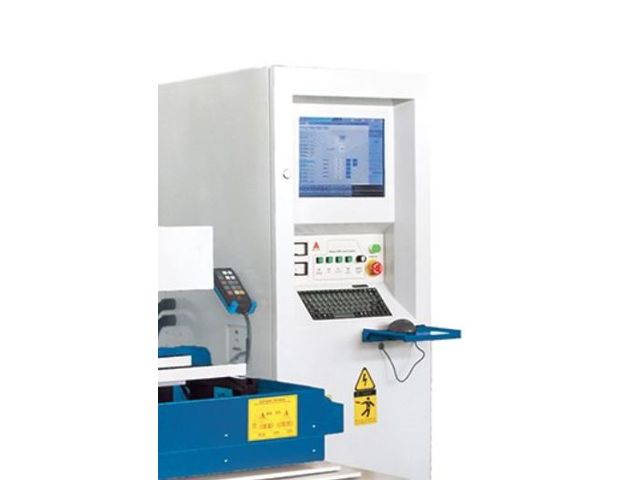

• The PC-based control system with servo drives is fine-tuned to the manufacturing process requirements, it is user-oriented and reliable.
• The pulse generator uses the newest technology for efficient machining.

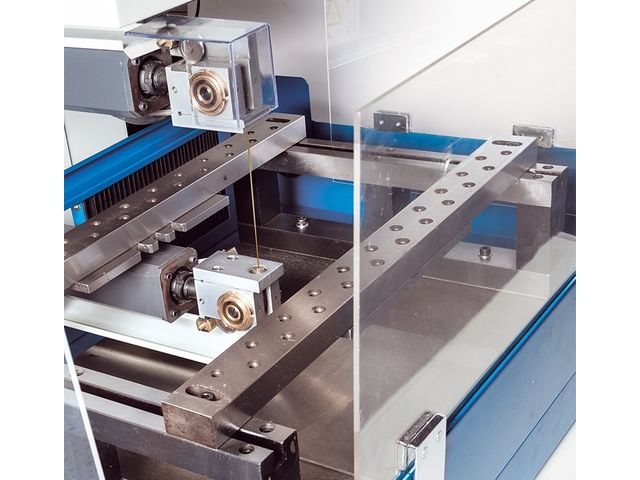

• The two-directional wire guide system is the heart of the machine, featuring perfect wire feed even with workpieces with large tapers or heights.
• The patented 4BLS system simplifies machining of workpieces with tapers up to ±15°, without sacrificing accuracy or surface quality.
• Integrated central lubrication.
• Handheld control for quick machine setup.

Standard equipment : CAD/CAM software, erosion wire 0.18 mm, filter, manual control unit, usb interface, operating tools, operator manual.
