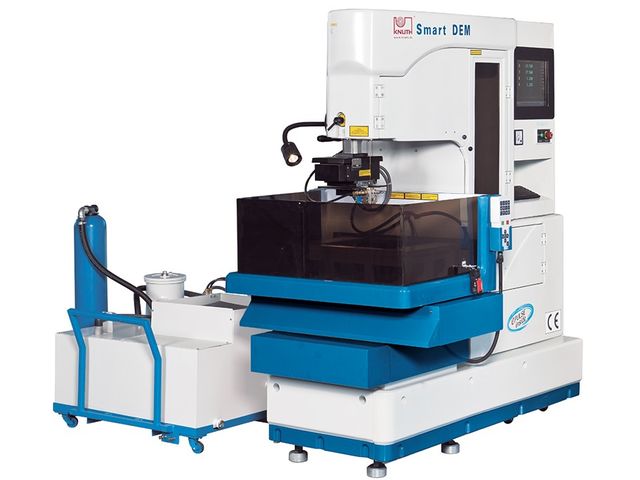

CNC Electric Discharge Machine - Smart DEM

CNC Electric Discharge Machine - Smart DEM - KNUTH

CNC Electric Discharge Machine - Smart DEM - Wire cutter

CNC Electric Discharge Machine - Smart DEM - produit présenté par KNUTH

CNC Electric Discharge Machine - Smart DEM

Wire cutter

“ High-Performance Electric Discharge Machine for high-precision formed parts and electrodes. ”

Ask for a quote

Presentation

Kundenmaschine zur Verkaufsvermittlung

Bei Interesse kann die Maschine in Almere, Niederlande begutachtet werden!

• on-line program editor
• state-of-the art cutting technology ensures excellent surface quality
• maximum process control for high-precision cutting
• removal speed 70 mm2/min

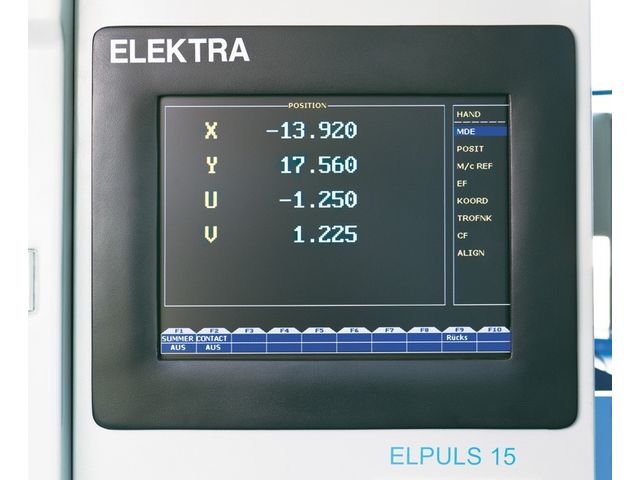

• TFT monitor
• includes hand control unit
• DXF files can be processed in the standard CAD system
• test run feature
• easy and quick programming directly at the machine
• powerful CAD/CAM software is included
• E-Pulse technology for perfect work results

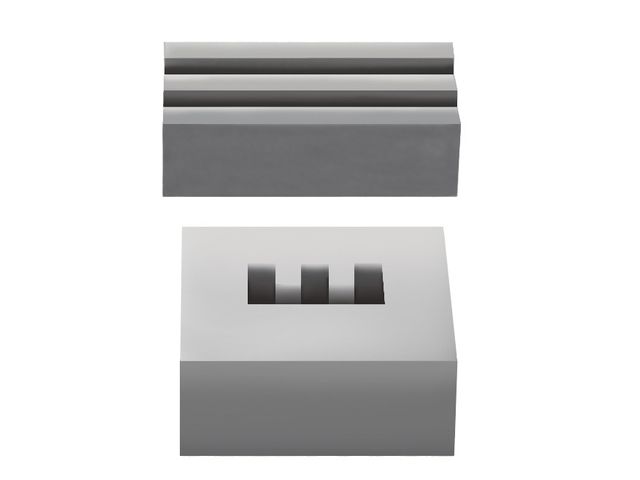

Stamps

• material: tool steel
• Height: 20 mm
• Machining time: 90 min.
• number of cuts: 2 (1 rough, 1 fine)
• surface grade: 1.2 µ Ra

Cones

• material: tool steel
• Height: 80 mm
• angle: ± 5°
• Machining time: 170 min.
• number of cuts: 1 rough

Octagon

• material: tool steel
• Height: 30 mm
• Machining time: 45 min.
• number of cuts: 2 (1 rough, 1 fine)
• surface grade: 1.2 µ Ra

Standard equipment : CNC control, CAD/CAM software, erosion wire 0.25 mm, diamond guides, paper filter, RS-232 interface and cable, USB interface, operating tools, operator manual.
