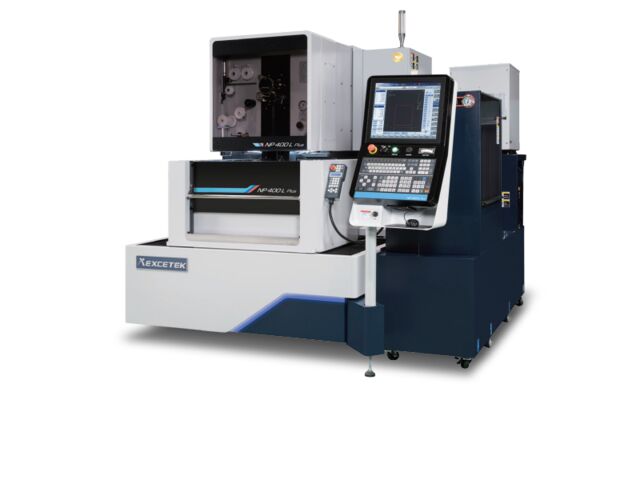

The NP400L Plus wire EDM machine is designed to meet the stringent requirements of complex, high-precision machining applications.

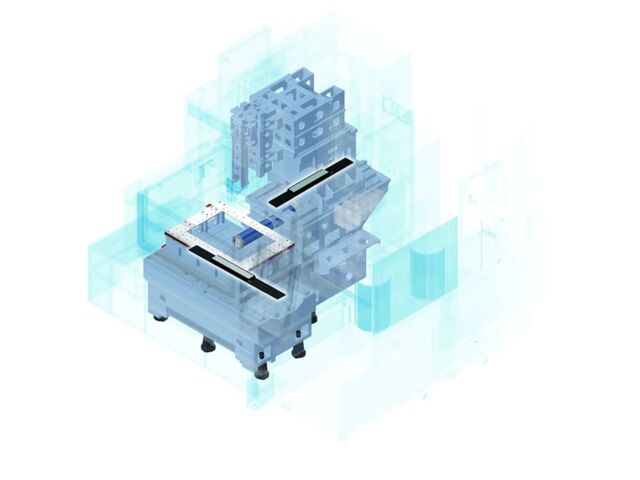

Its rigid structure, optimized using Finite Element Analysis (FEA), ensures consistent mechanical stability, even under significant thermal variations.
This robust foundation, combined with an XY travel of 400 × 300 mm and a Z-axis stroke of 220 mm, allows the machine to accommodate workpieces up to 750 × 550 × 215 mm and weighing as much as 500 kg.

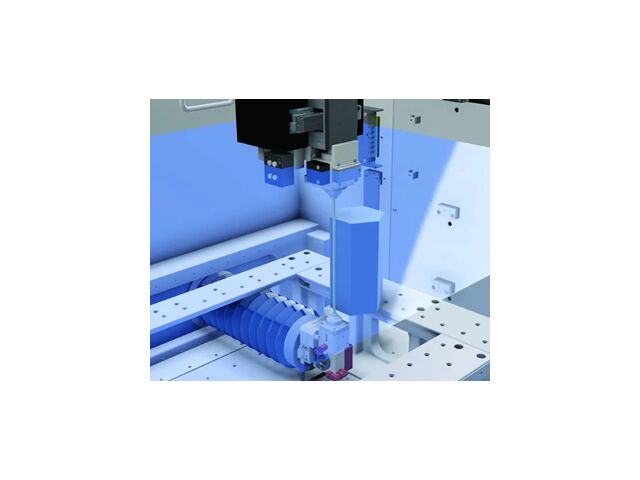

High-thrust linear motors, paired with glass scales, provide micron-level repeatable accuracy and superior surface finishes. Meanwhile, the servo-driven UVZ axes ensure reliable taper machining capabilities up to ±22° over 80 mm.
The industrial control system features an ergonomic user interface that simplifies the programming of complex toolpaths, with automatic management of cutting parameters, wire tension, and flushing conditions to maximize cutting speed and process stability.
The 650-liter deionized water tank, equipped with an automatic deionization system and automatic chiller, maintains a stable cutting environment. A dual-cartridge filtration system further enhances process reliability.
Together, these features make the NP400L Plus a precise, reliable, and high-performance solution for wire EDM machining across a wide range of demanding industrial applications.
High-precision wire EDM machineRigid structure optimized through Finite Element Analysis (FEA)Excellent thermal and mechanical stabilityXY travel: 400 × 300 mmMaximum workpiece weight up to 500 kgAutomatic management of cutting parametersErgonomic control interface (industrial PC)Automatic deionization system and automatic chiller
Precision engineeringComplex part machiningIndustrial subcontracting
