Linear Motor Wire Drawing Machine – EXCETEK NP600L Plus

Electric erosion

“ Extreme precision and high repeatability Ultra-rigid mechanical design Increased machining capacity ”

Ask for a quote

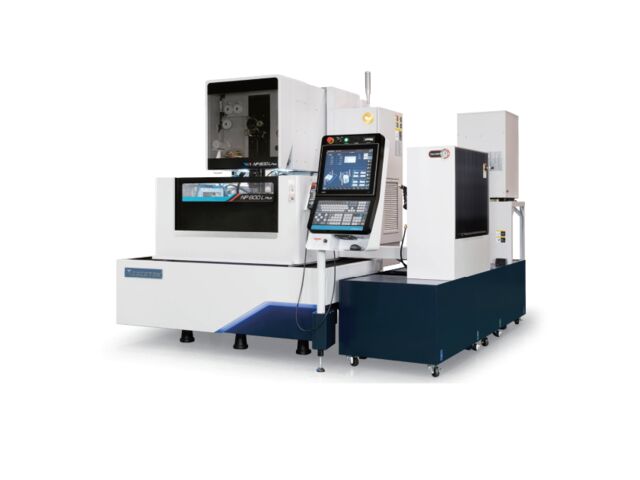

The NP600L Plus wire EDM machine is part of the high-precision series designed for the most demanding applications, thanks to a rigid design optimized using the finite element method to ensure perfect stability in the face of thermal and mechanical variations.

Its Meehanite cast iron structure ensures long-lasting robustness, while the high-thrust linear motors on the XY axes deliver fast, precise, and perfectly repeatable cutting.

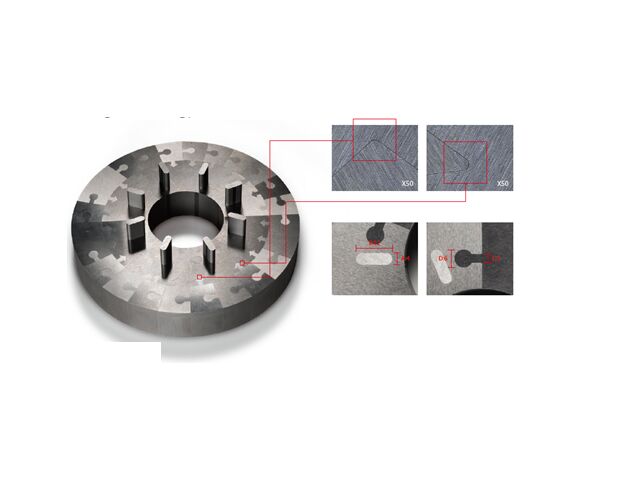

Combined with glass scales and UVZ control via servomotors, the NP600L Plus achieves micron-level precision with remarkably fine surface finishes.

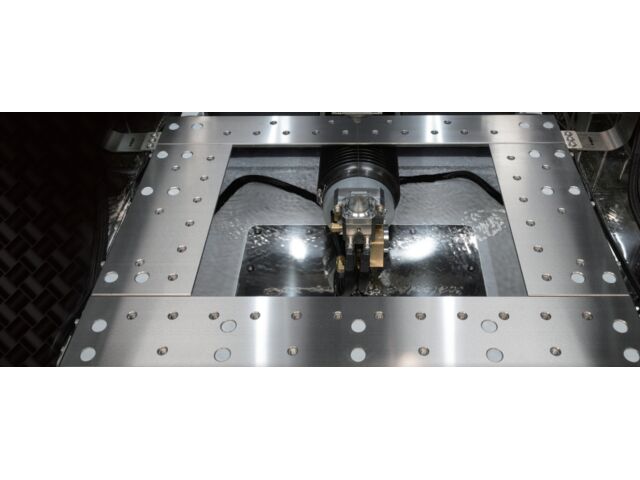

Designed to accommodate large parts up to 1,000 × 700 × 345/405 mm with a maximum weight of 800/850 kg, it offers table travel of 600 × 400 mm, as well as U/V axes of 160 × 160 mm and an optional Z-axis up to 410 mm.

Technical features

High-precision Wire EDM machine Ultra-fine surface finishes down to very low Ra values UVZ axis control via servo motors Rigid Meehanite cast iron structure Glass scales for micrometer-level accuracy 900 / 1,000 L deionized water tank with fully automated management system
