High-Throughput Rheometer : HTR Anton Paar France

High-Throughput Rheometer : HTR

Viscosimeters, Rheometers

Vote

“ Maximized operation flexibility HTR can be equipped with up to 96 measuring geometry units (e.g. for polymer melts) and offers three different rheological geometries (CC, CP, PP). The standard rack configuration holds 96 samples. Different types of racks for pipettes, syringes, and trim blades and temperature-controlled sample storage are available Perfectly safe and accurate workflow HTR achieves lab accuracy due to mechanical decoupling of rheometer and automation unit and is set up for maximum efficiency : - Sample management by using job lists - LIMS integration - Priority samples can be introduced at any time - Four-stage programmable cleaning station - Integrated trim tool removes excessive sample material to avoid wrong measurements results - Visual verification of trim results Masters all kinds of rheological samples HTR offers different systems for : - Dispensable samples : system for liquid samples with up to 100 mPa.s which are suited for exact dispensing - Low-viscosity samples : system for concentric ylinder measurements for low-viscosity samples - Paste-like samples : system for paste-like samples which are not suited exact dispensiong - Polymer melts : system for measuring polymer melts from disk-shaped samples Additional modules for growing automation need The following additional modules can be selected : - Gravimetric and volumetric dosing and weighing - pH measurement - Capping/decapping of sample cups or vials - Various gripper tools for samples, measurement geometries, and disposables - Precise dosing of sample liquids via pipettes and/or syringes - Automatic cutting of pipette opening to reduce shear stress - Shaker module for reproducible shaking - Bar code reader for sample identification, process control, and logging - Ventilation for volatile and solvent-based samples Where precision meets performance Anton Paar's global sales and service network is close to you from the project definition to execution and commissioning, and offers comprehensive training, support, and individual maintenance and service. Automated solutions from Anton Paar represent trustworthy technology and automation from a single source. ”
Ask for a quote Receive Documentation Contact the supplier

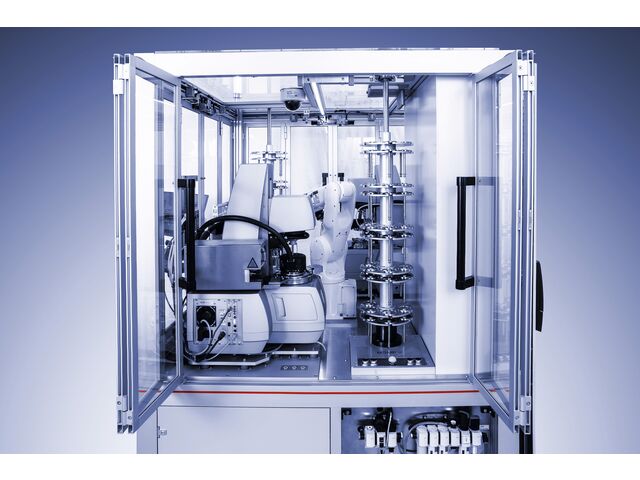

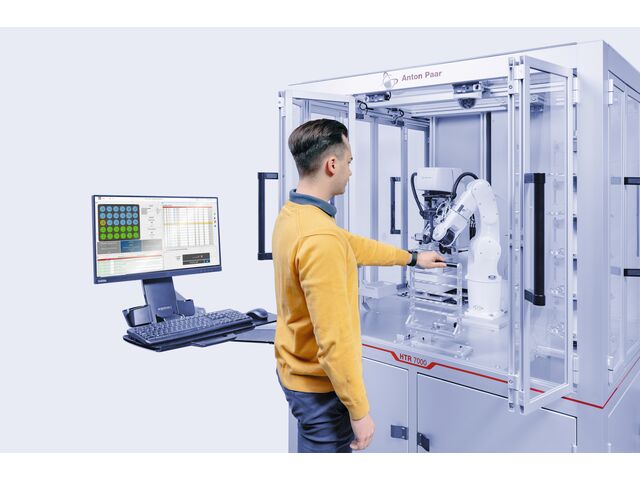

Rheometer automation for high sample throughput and complex sample handling : the world's first fully automated high-throughput rheometer

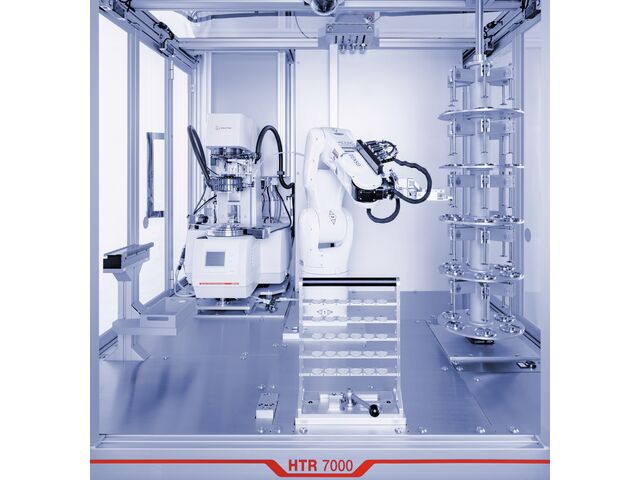

HTR is the first fully automated rheometer available. Rheological measurements are carried out by MCR rheometers in the high quality the instruments are known for, while a robot handles all additional tasks pertaining to the measurement: sample loading, sample trimming and the cleaning of the upper and lower measuring system while the next measurement is already in progress.

The complete automation of the entire measuring procedure, from sample loading righ through to data evaluation, for the very first time allows fully realized high-throughput rheometry.



Max. torque : 230 mNm Min. torque (rotation) : 1 nNm Min. torque (oscillation) : 0.05 nNm Max. angular velocity : 314 rad/s Max. angular frequency : 628 rad/s Normal force range : 0.005 N to 50 N
Download the complete technical features
